Advanced Ultrasound in Diagnosis and Therapy ›› 2023, Vol. 7 ›› Issue (4): 321-332.doi: 10.37015/AUDT.2023.230041
• Review Articles • Previous Articles Next Articles
Osama Mahmoud, BSa, Ajay Makkena, BSa, Corinne E. Wessner, MS, MBA, RDMSb, Ji-Bin Liu, MDb, John R. Eisenbrey, PhDb, Andrej Lyshchik, MD, PhDb,*()
Received:
2023-06-21
Revised:
2023-07-21
Accepted:
2023-08-20
Online:
2023-12-30
Published:
2023-10-23
Contact:
Department of Radiology, Thomas Jefferson University, 7th Floor Main Building, 132 S. 10th Street, Philadelphia, PA 19107, USA. e-mail: Osama Mahmoud, BS, Ajay Makkena, BS, Corinne E. Wessner, MS, MBA, RDMS, Ji-Bin Liu, MD, John R. Eisenbrey, PhD, Andrej Lyshchik, MD, PhD. Contrast-Enhanced Ultrasound LI-RADS: A Pictorial Review. Advanced Ultrasound in Diagnosis and Therapy, 2023, 7(4): 321-332.

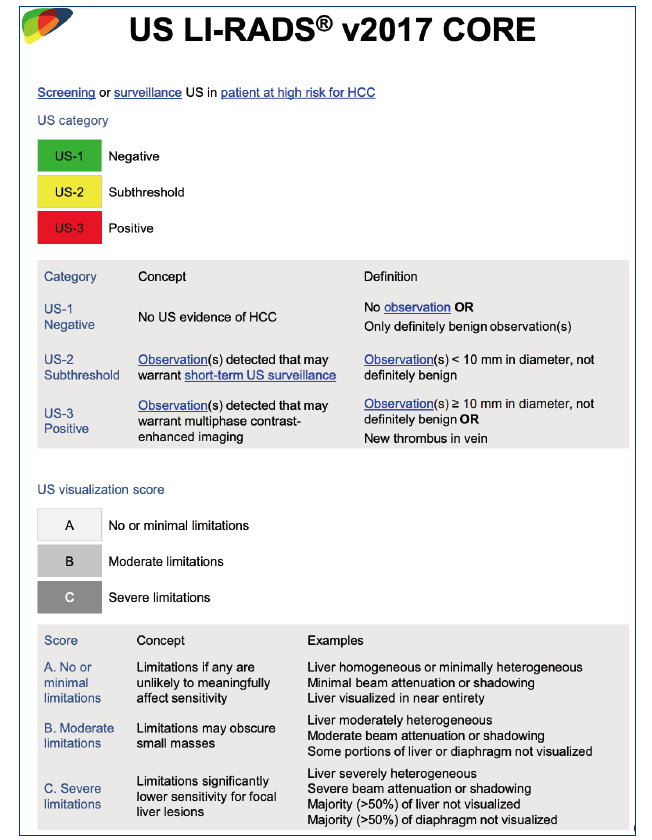

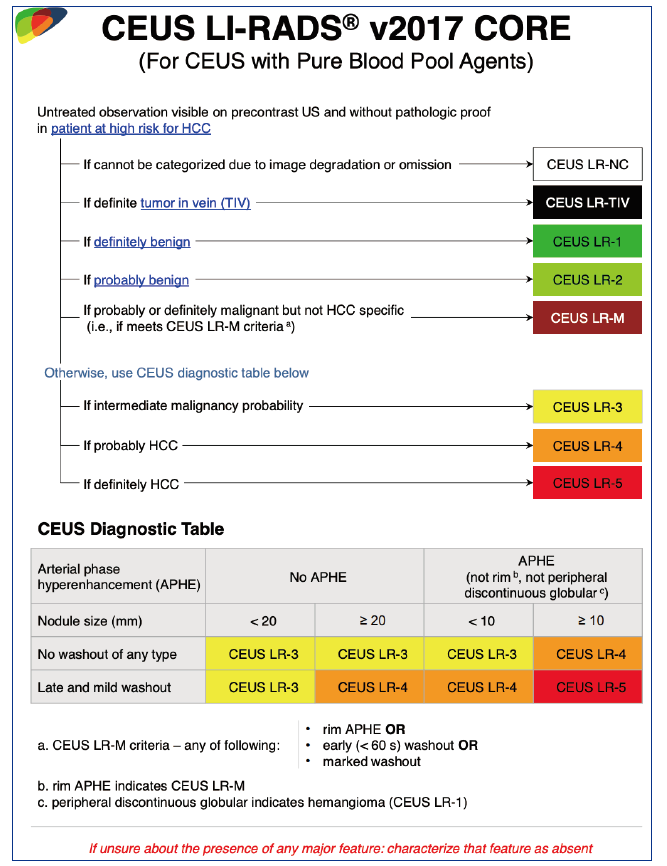

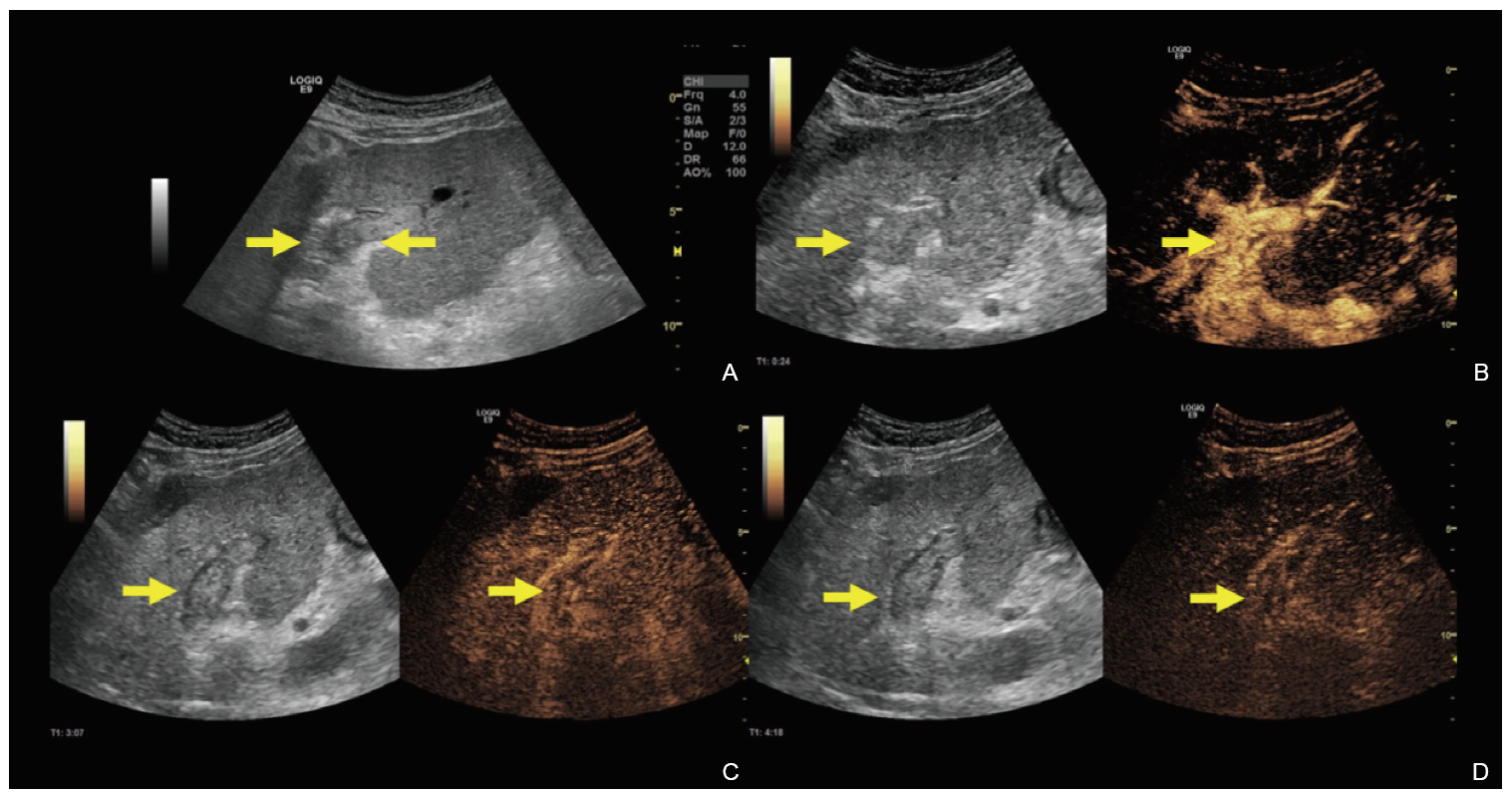

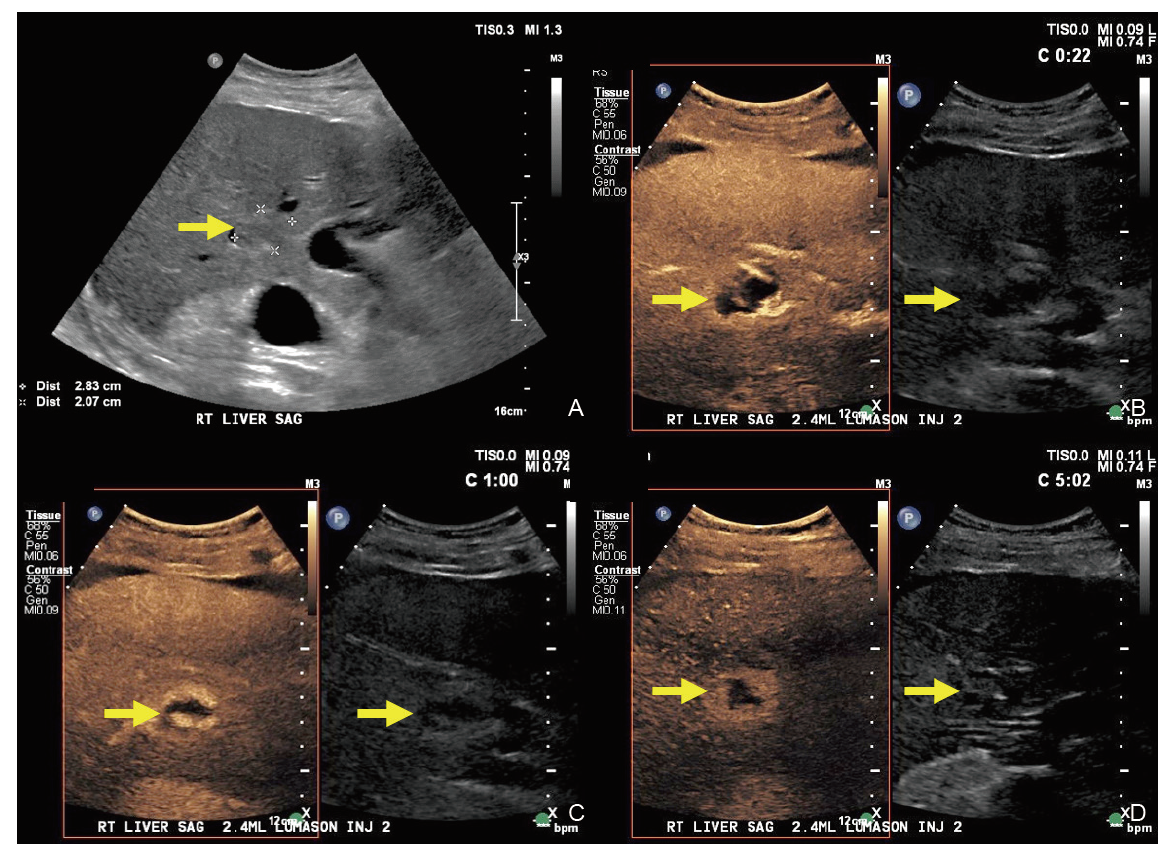

Figure 1
(A) Sagittal image of a hepatic segment 8 isoechoic solid observation measuring 28 mm; (B) At 22 seconds, the lesion demonstrates peripheral globular enhancement during the arterial phase; (C and D) At 1 minute and 5 minutes post injection show no washout with continued peripheral globular enhancement."

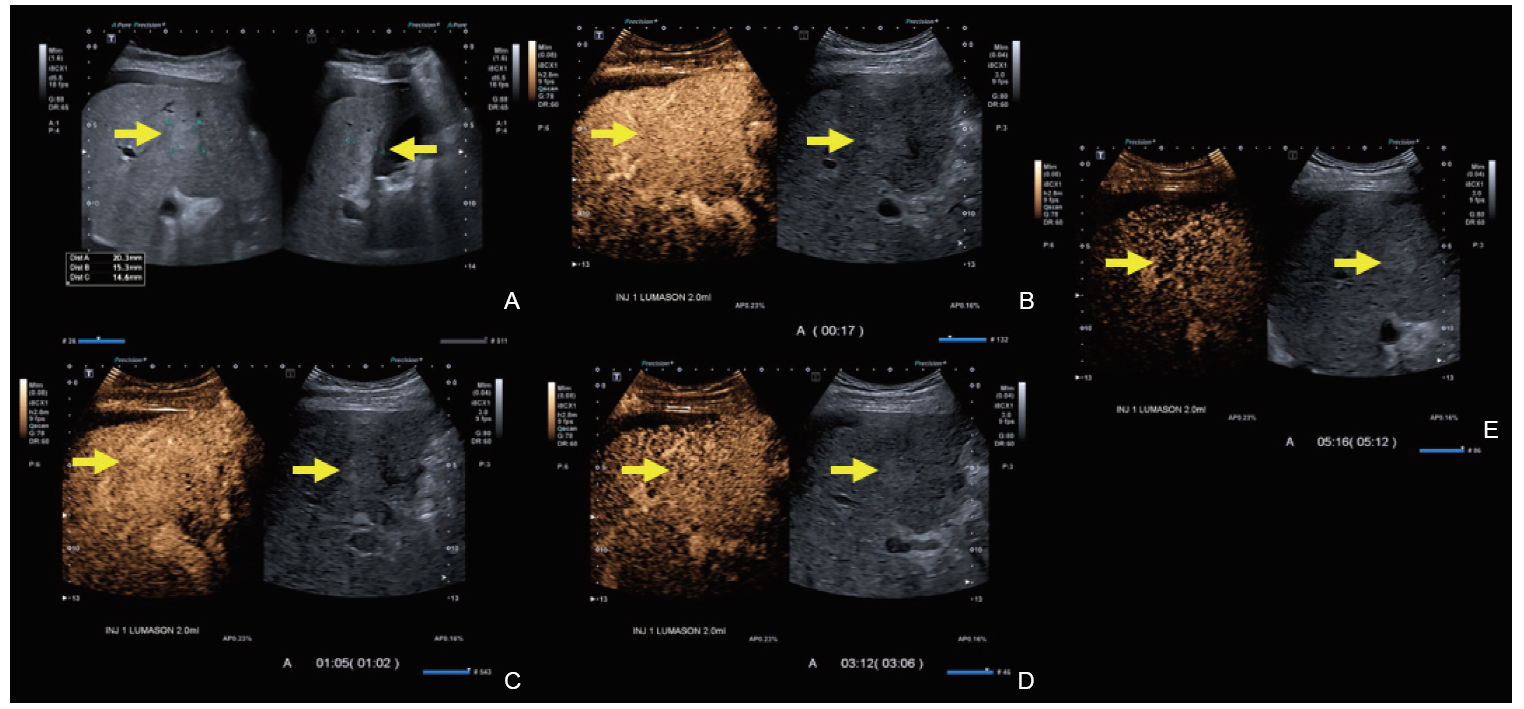

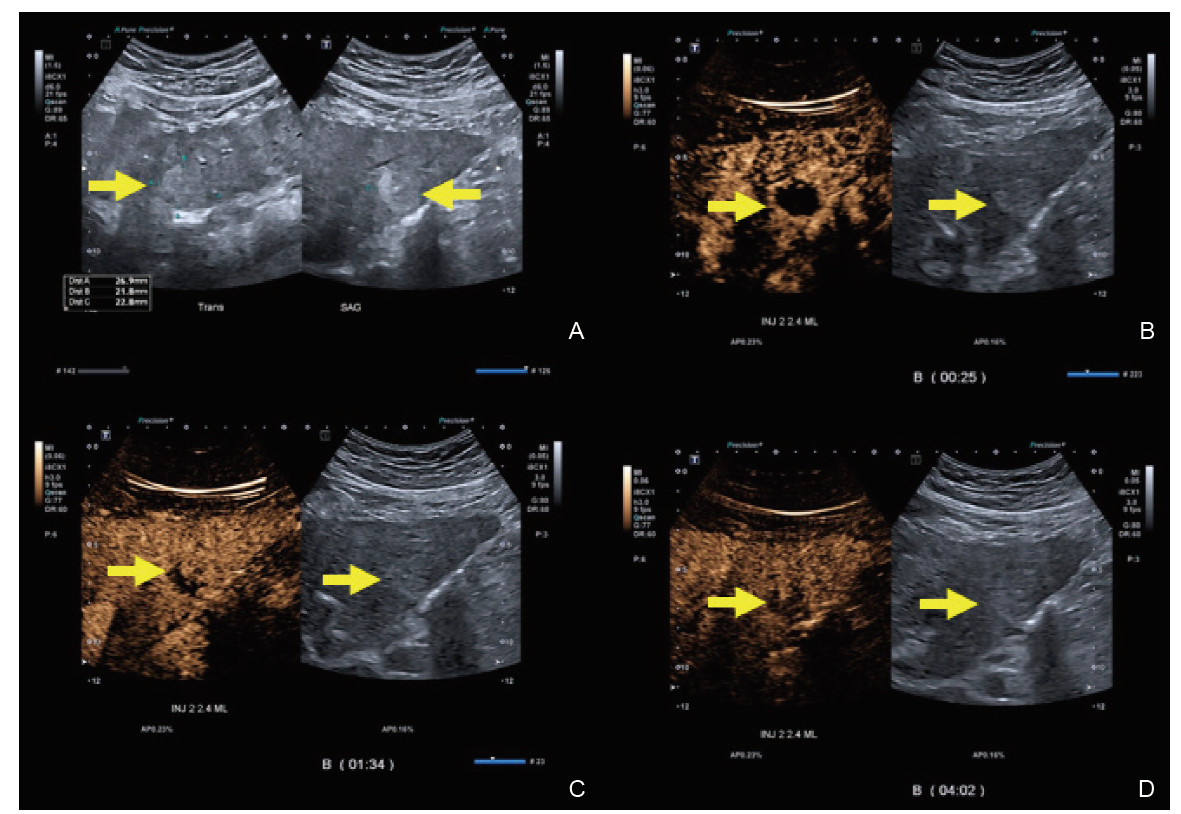

Figure 2
(A) Sagittal and transverse images of a hepatic segment 3 hyperechoic solid observation measuring 27 mm; (B) This image is at 25 seconds, demonstrating peripheral globular enhancement during the arterial phase with areas of non-enhancement; (C and D) Images obtained at 1- and 4-minutes post-injection showing iso-enhancement with no washout."

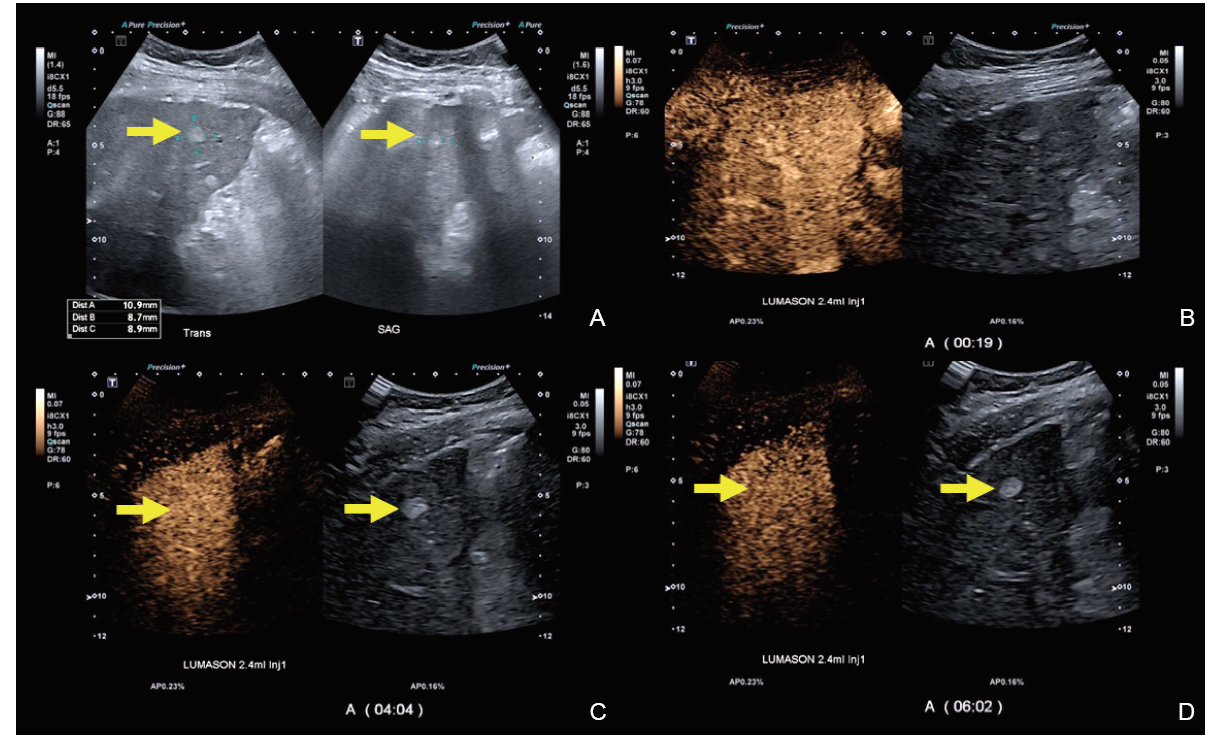

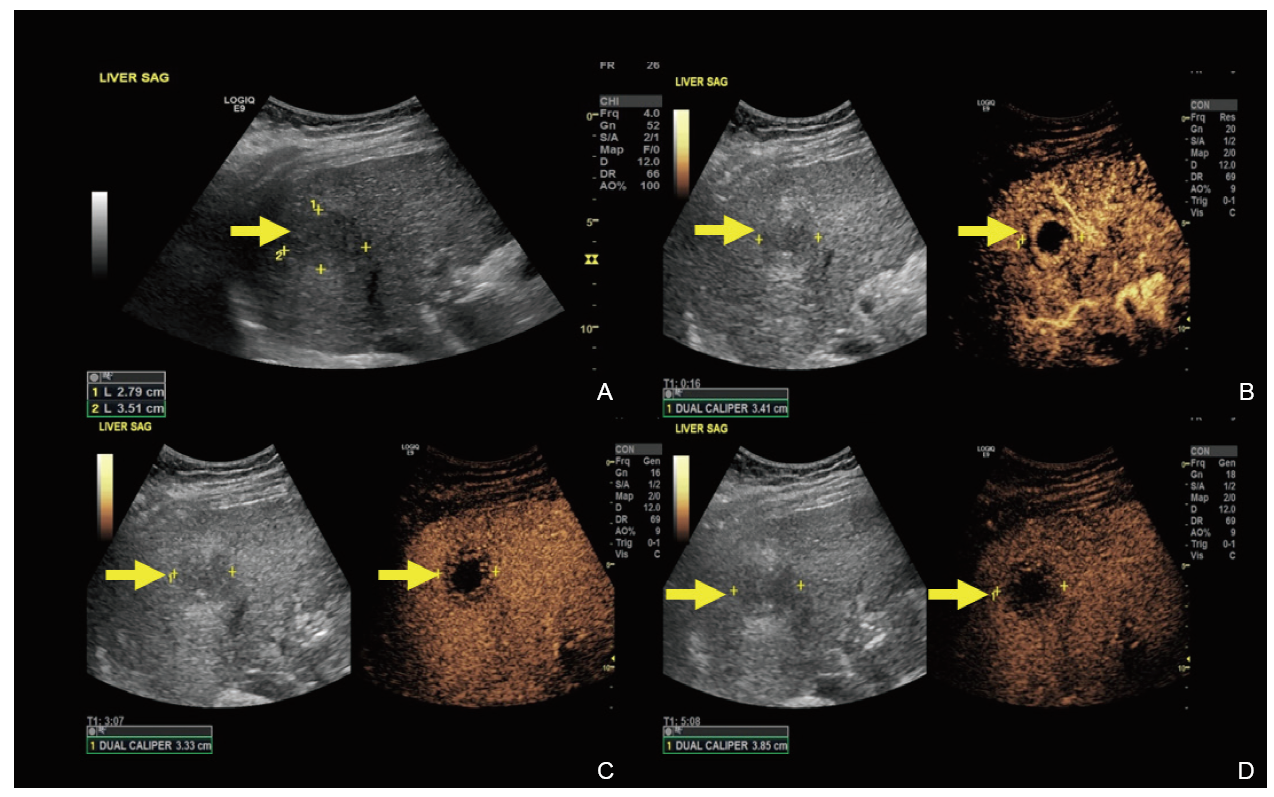

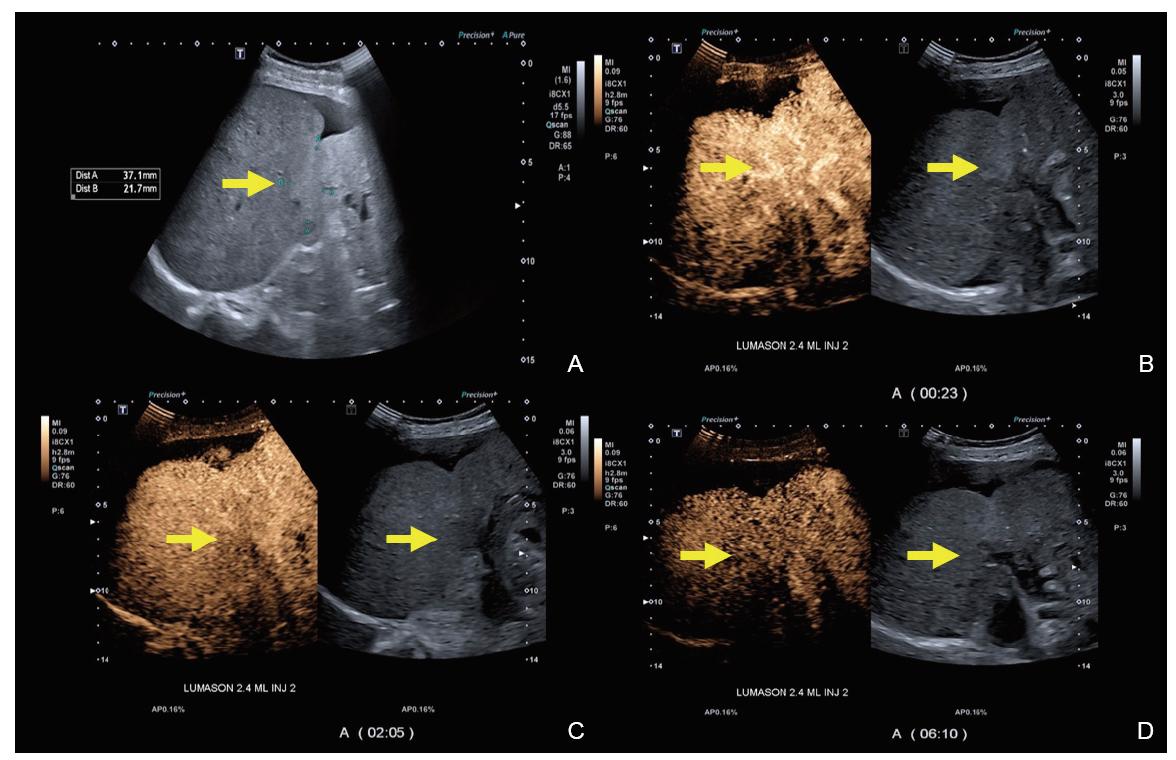

Figure 3
(A) Sagittal image of a hepatic segment 6 solid isoechoic observation measuring 37 mm; (B) This image is at 23 seconds, demonstrating global iso-enhancement during arterial phase; (C and D) Images obtained at 2- and 6-minutes post-injection show an iso-enhanced observation with no washout."

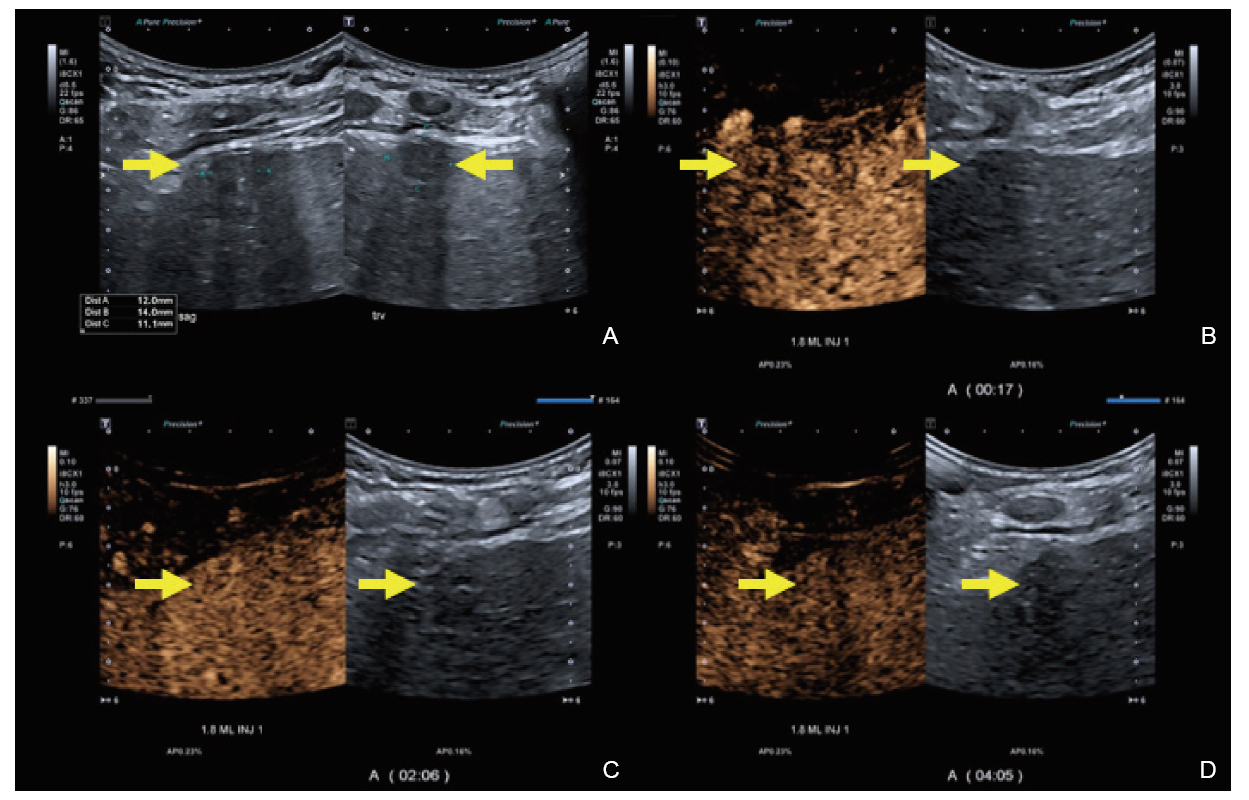

Figure 4
(A) Sagittal and transverse images of a hepatic segment 5 hyperechoic solid observation measuring 20 mm; (B) This image is at 17 seconds, demonstrating global iso-enhancement during the arterial phase; (C-E) Images obtained at 1-, 3-, and 5-minutes post-injection show iso-enhancement with no washout."

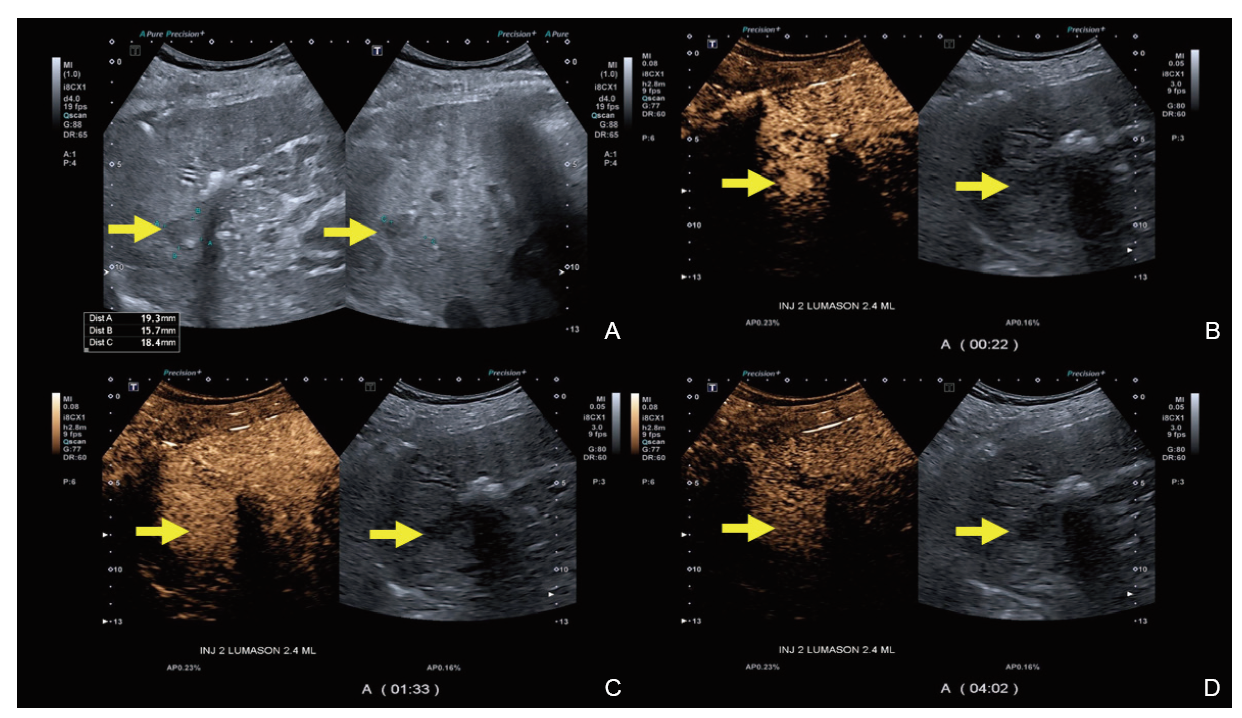

Figure 7
(A) Sagittal and transverse images of a hepatic segment 6 solid hyperechoic observation measuring 19 mm; (B) At 22 seconds the lesion demonstrates global hyper-enhancement during the arterial phase; (C and D) Images obtained at 1- and 4-minutes post-injection show an iso-enhanced observation with no washout."

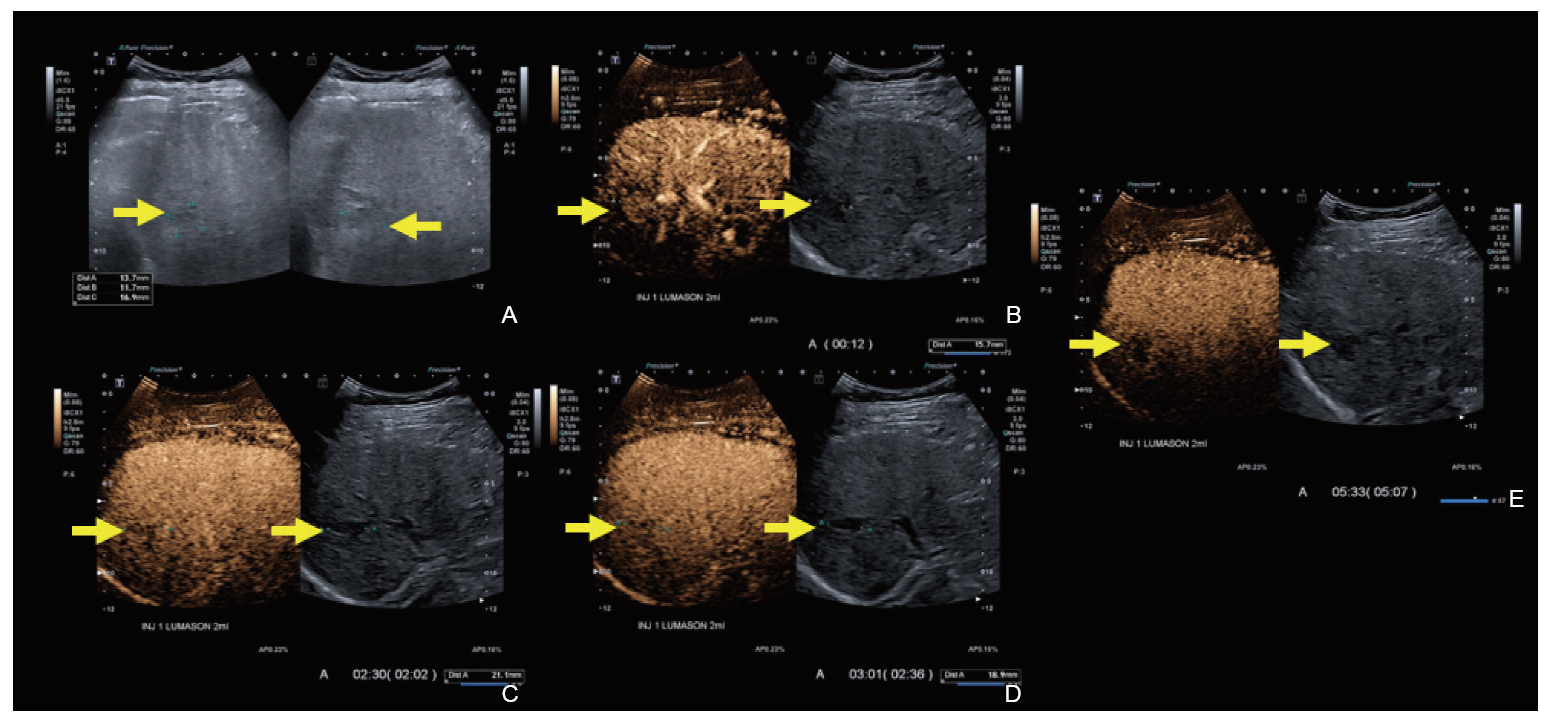

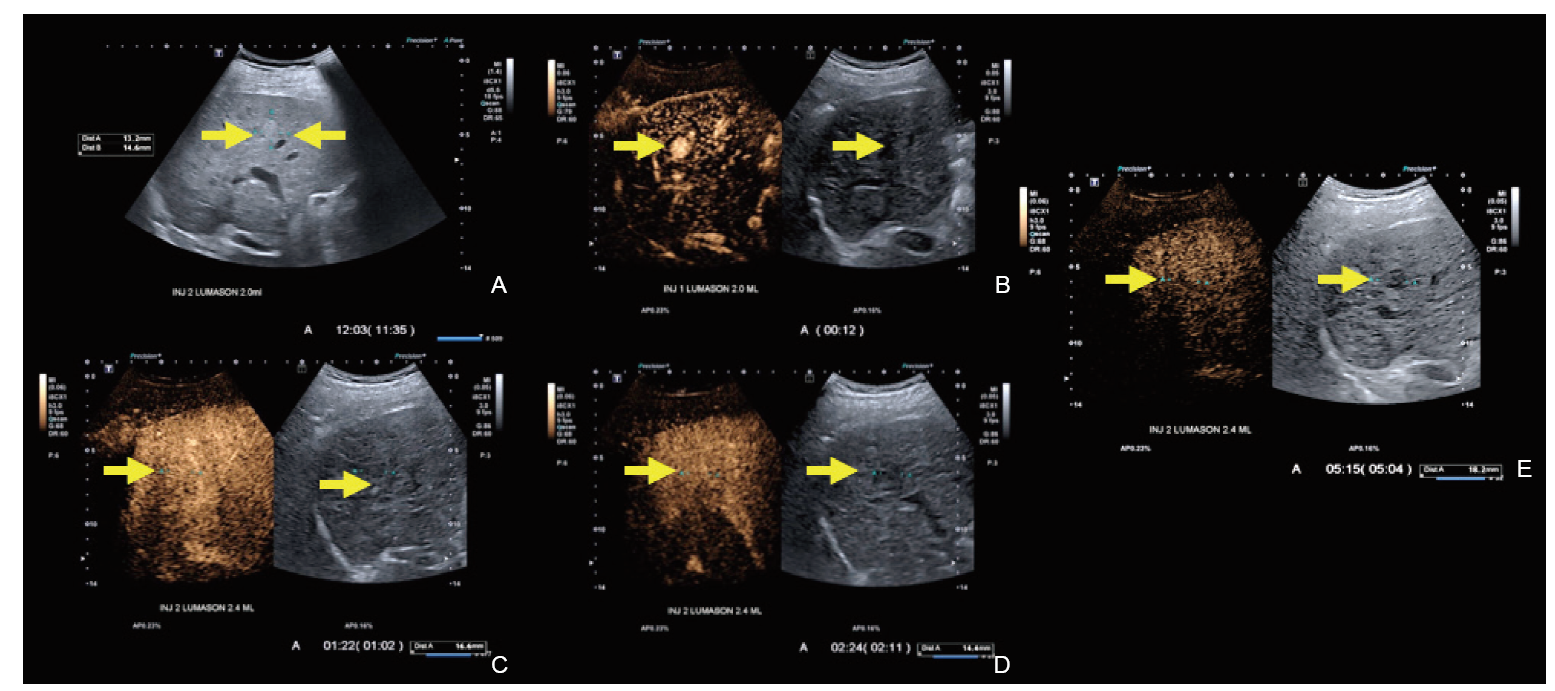

Figure 8

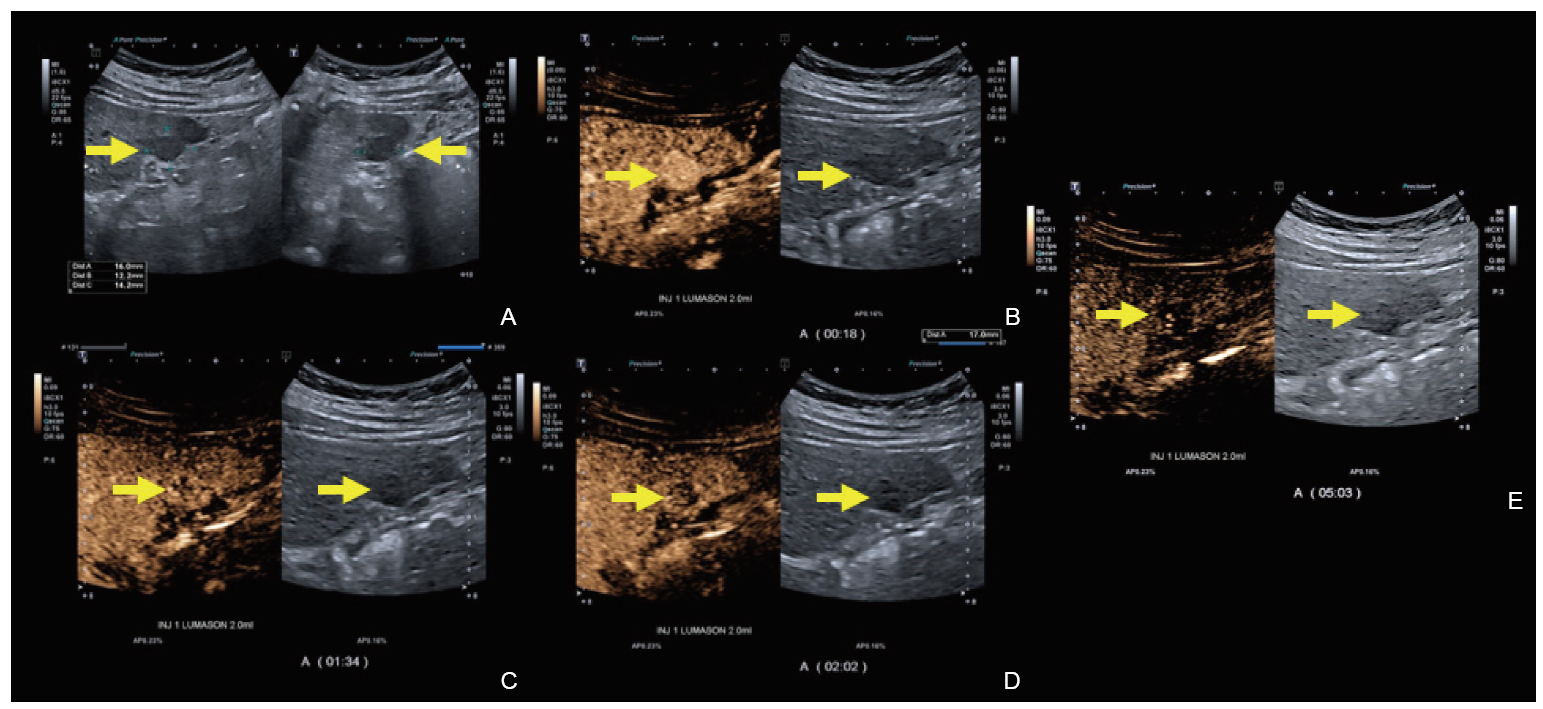

(A) Sagittal and transverse images of a hepatic segment 6 with mixed echogenicity solid observation measuring 18 mm; (B) At 12 seconds the lesion demonstrates global hyper-enhancement during the arterial phase; (C-E) Images obtained at 1-, 2-, and 5-minutes post-injection show iso-enhancement with no washout."
Figure 9
(A) Sagittal and transverse images of a hepatic segment 2 solid isoechoic with circumscribed margins measuring 33 mm; (B) At 8 seconds the lesion demonstrates global hyper-enhancement during the arterial phase; (C and D) Images obtained at 4- and 7-minutes post-injection show mild weak washout."
Figure 12
(A) Sagittal and transverse images of a hepatic segment 8 infiltrative hypoechoic solid observation measuring 17 mm; (B) This image is at 12 seconds, demonstrating global hyper-enhancement during the arterial phase; (C-E) Images obtained at 2-, 3-, and 5-minutes post-injection, demonstrating mild washout."

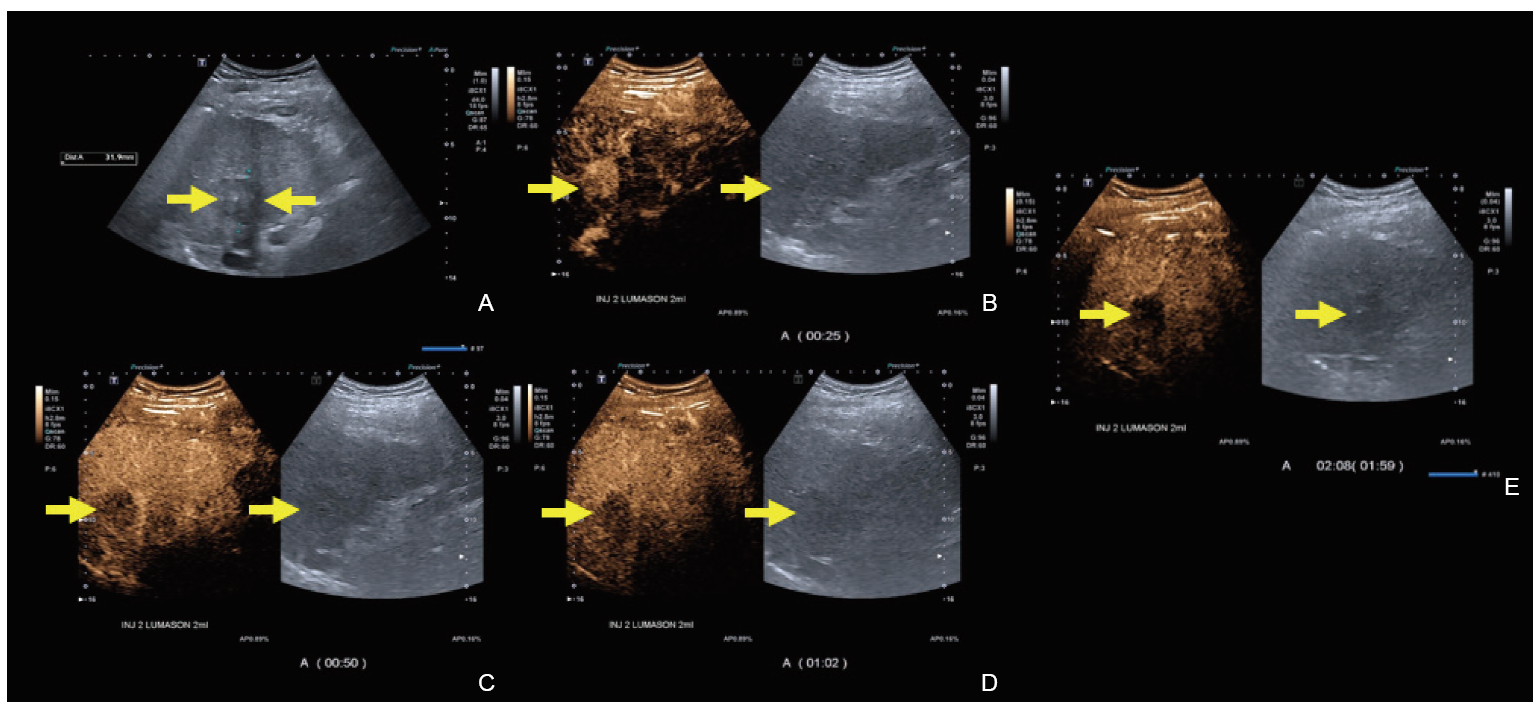

Figure 14
(A) Sagittal and transverse images of a hepatic segment 8 mixed echogenicity solid observation measuring 32 mm; (B) This image is at 25 seconds. The image demonstrates global hyper-enhancement during arterial phase; (C) This image is at 50 seconds post-injection, showing marked washout; (D and E) Images obtained at 1- and 2-minutes post-injection continuously demonstrating marked washout."
