Ultrasound-based Dual Elastography for Evaluating the Severity of Drug-induced Liver Injury: One Step Closer to Pathology

doi:10.37015/AUDT.2024.240017

Abstract

Abstract:

Objective: Drug-induced liver injury (DILI) is one of the most challenging forms of liver disorder. We aimed to use ultrasound dual elastography, by combining strain and shear wave imaging, to noninvasively assess liver inflammation and injury severity of DILI.

Methods: 291 DILI patients were included in the prospective multicenter study and divided into training and validation cohorts. All patients received liver biopsy and dual elastography examination. Liver inflammation grading (G0-4) and fibrosis staging (F0-4) were considered as the gold standard of liver injury and G+F ≥ 5 was defined as severe liver injury. Indexes of dual elastography and serological indicators (DESI) were selected and analyzed with multivariable logistic regression to build DESI models for evaluating liver inflammation, and the C score model was built with the same method for diagnosing severe liver injury.

Results: Areas under the receiver operating characteristic curve (AUCs) of the DESI model to assess liver inflammation ≥ G2 were 0.887 and 0.868 in training and validation cohorts, respectively. AUCs of the DESI model in diagnosing ≥ G3 were 0.893 and 0.896 in the two cohorts, respectively. The C score accurately assessed severe liver injury with AUCs of 0.909 and 0.885 in two cohorts. Of the 87 patients with mild clinical severity, 10 (11.49%) had severe pathological injury, which could be identified by C score.

Conclusion: Dual elastography demonstrated high performance in diagnosing liver inflammation and identifying severe pathological liver injury of DILI, making up for the deficiency of serological indicators alone for evaluating DILI severity.

Key words: Drug-induced liver injury; Liver inflammation activity; Dual elastography; Strain elastography; Shear wave elastography

Liyun Xue, PhD, Hui Feng, MD, Fankun Meng, MD, Ying Zheng, MD, Guangwen Cheng, PhD, Yao Zhang, MD, Zhiyong Yin, MD, Jing Wu, MD, Jiabao Zhu, MD, Xueqi Li, MD, Jie Yu, PhD, Ping Liang, PhD, Hong Ding, PhD. Ultrasound-based Dual Elastography for Evaluating the Severity of Drug-induced Liver Injury: One Step Closer to Pathology. Advanced Ultrasound in Diagnosis and Therapy, 2024, 8(3): 106-115.

Figures/Tables 7

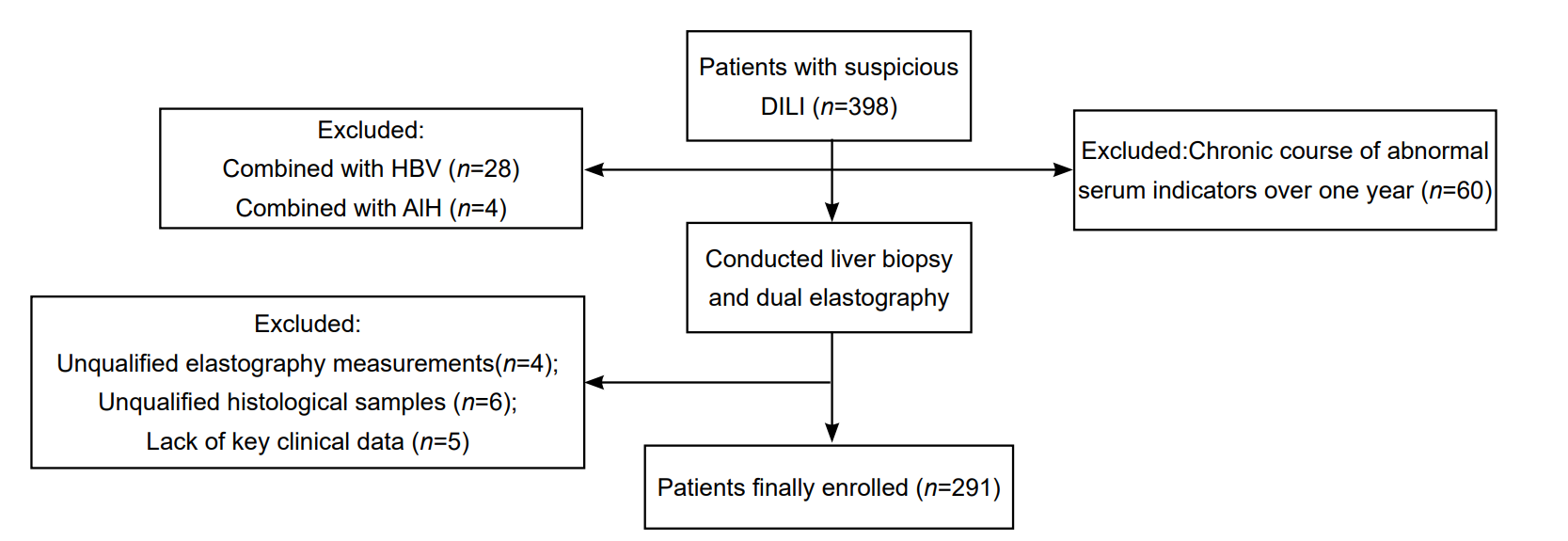

Figure 1

Table 1

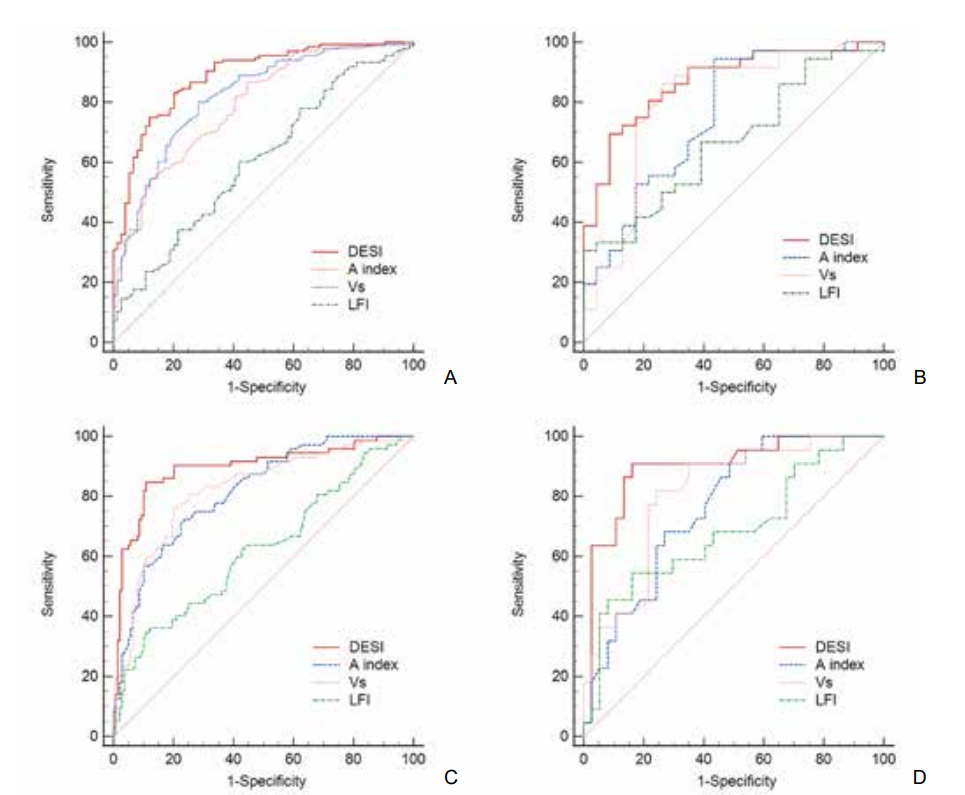

Figure 2

Table 2

Table 3

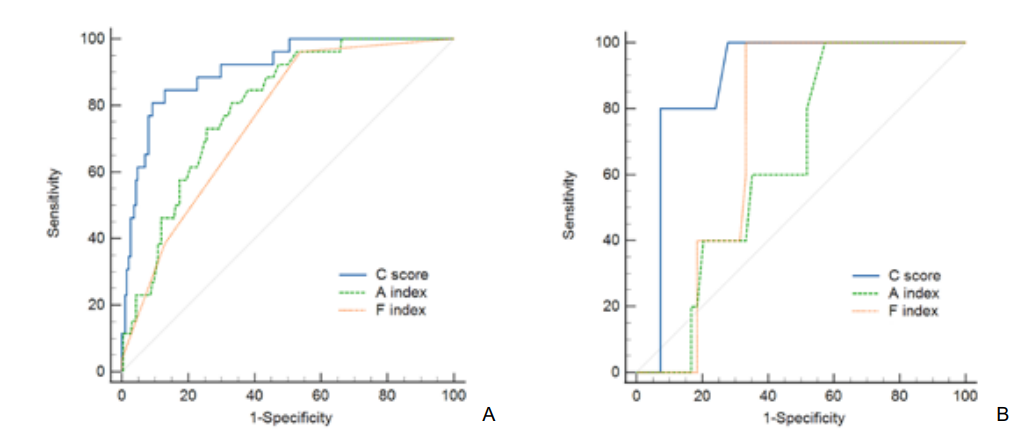

Figure 3

Table 4

References 28

[1]	Vuppalanchi R, Ghabril M. Review article: clinical assessment of suspected drug-induced liver injury and its management. Aliment Pharmacol Ther 2022;56:1516-1531.
[2]	Kobayashi T, Iwaki M, Nogami A, Yoneda M. Epidemiology and management of drug-induced liver injury: importance of the updated RUCAM. J Clin Transl Hepatol 2023;11:1239-1245.
[3]	Allison R, Guraka A, Shawa IT, Tripathi G, Moritz W, Kermanizadeh A. Drug induced liver injury - a 2023 update. J Toxicol Environ Health B Crit Rev 2023;26:442-467.
[4]	Ma ZT, Shi Z, Xiao XH, Wang JB. New insights into herb-induced liver injury. Antioxid Redox Signal 2023;38:1138-1149.
[5]	Bjornsson H K, Bjornsson E S. Drug-induced liver injury: Pathogenesis, epidemiology, clinical features, and practical management. Eur J Intern Med 2022;97:26-31.
[6]	Garcia-Cortes M, Robles-Diaz M, Stephens C, Ortega-Alonso A, Lucena MI, Andrade RJ. Drug induced liver injury: an update. Arch Toxicol 2020;94:3381-3407.
[7]	Clinton JW, Kiparizoska S, Aggarwal S, Woo S, Davis W, Lewis JH. Drug-induced liver injury: highlights and controversies in the recent literature. Drug Saf 2021;44:1125-1149.
[8]	Fontana RJ, Liou I, Reuben A, Suzuki A, Fiel MI, Lee W, et al. AASLD practice guidance on drug, herbal, and dietary supplement-induced liver injury. Hepatology 2023;77:1036-1065.
[9]	Ginès P, Castera L, Lammert F, Graupera I, Serra-Burriel M, Allen AM, et al. Population screening for liver fibrosis: Toward early diagnosis and intervention for chronic liver diseases. Hepatology 2022;75:219-228.
[10]	Kennedy P, Wagner M, Castéra L, Hong CW, Johnson CL, Sirlin CB, et al. Quantitative elastography methods in liver disease: current evidence and future directions. Radiology 2018;286:738-763.
[11]	Dietrich CF, Bamber J, Berzigotti A, Bota S, Cantisani V, Castera L, et al. EFSUMB Guidelines and Recommendations on the Clinical Use of Liver Ultrasound Elastography, Update 2017 (Long Version). Ultraschall Med 2017;38:e16-e47.
[12]	Yada N, Sakurai T, Minami T, Arizumi T, Takita M, Hagiwara S, et al. Influence of liver inflammation on liver stiffness measurement in patients with autoimmune hepatitis evaluation by combinational elastography. Oncology 2017;92Suppl 1:10-15.
[13]	Zhao Y, Wu L, Qin H, Li Q, Shen C, He Y, et al. Preoperative combi-elastography for the prediction of early recurrence after curative resection of hepatocellular carcinoma. Clin Imaging 2021;79:173-178.
[14]	Medina-Caliz I, Robles-Diaz M, Garcia-Muñoz B, Stephens C, Ortega-Alonso A, Garcia-Cortes M, et al. Definition and risk factors for chronicity following acute idiosyncratic drug-induced liver injury. J Hepatol 2016;65:532-542.
[15]	Chalasani NP, Maddur H, Russo MW, Wong RJ, Reddy KR. ACG Clinical Guideline: Diagnosis and Management of Idiosyncratic Drug-Induced Liver Injury. Am J Gastroenterol 2021;116:878-898.
[16]	Aithal GP, Watkins PB, Andrade RJ, Larrey D, Molokhia M, Takikawa H, et al. Case definition and phenotype standardization in drug-induced liver injury. Clin Pharmacol Ther 2011;89:806-815.
[17]	Barr RG, Wilson SR, Rubens D, Garcia-Tsao G, Ferraioli G. Update to the society of radiologists in ultrasound liver elastography consensus statement. Radiology 2020;296:263-274.
[18]	Yada N, Kudo M, Morikawa H, Fujimoto K, Kato M, Kawada N. Assessment of liver fibrosis with real-time tissue elastography in chronic viral hepatitis. Oncology 2013;84Suppl 1:13-20.
[19]	Yada N, Tamaki N, Koizumi Y, Hirooka M, Nakashima O, Hiasa Y, et al. Diagnosis of fibrosis and activity by a combined use of strain and shear wave Imaging in patients with liver disease. Dig Dis 2017;35:515-520.
[20]	Caballero T, Pérez-Milena A, Masseroli M, O'Valle F, Salmerón FJ, Del Moral RM, et al. Liver fibrosis assessment with semiquantitative indexes and image analysis quantification in sustained-responder and non-responder interferon-treated patients with chronic hepatitis C. J Hepatol 2001;34:740-747.
[21]	Jianping D, Xi C, Guangwen C, Fankun M, Ying Z, Bulin Z, et al. Dual elastography to discriminate adjacent stages of fibrosis and inflammation in chronic hepatitis B: A prospective multicenter study. Hepatology 2024;79:438-450.
[22]	Mcgill MR, Jaeschke H. Biomarkers of drug-induced liver injury: progress and utility in research, medicine, and regulation. Expert Rev Mol Diagn 2018;18:797-807.
[23]	Rathi C, Pipaliya N, Patel R, Ingle M, Phadke A, Sawant P. Drug induced liver injury at a tertiary hospital in India: etiology, clinical features and predictors of mortality. Ann Hepatol 2017;16:442-450.
[24]	Ahmad J, Barnhart HX, Bonacini M, Ghabril M, Hayashi PH, Odin JA, et al. Value of liver biopsy in the diagnosis of drug-induced liver injury. J Hepatol 2022;76:1070-1078.
[25]	Li ZB, Chen DD, He QJ, Li L, Zhou G, Fu YM, et al. The LAC score indicates significant fibrosis in patients with chronic drug-induced liver injury: A large biopsy-based study. Front Pharmacol 2021;12:734090.
[26]	Rongngern P, Chularojanamontri L, Wongpraparut C, Silpa-Archa N, Chotiyaputta W, Pongpaibul A, et al. Diagnostic performance of transient elastography for detection of methotrexate-induced liver injury using Roenigk classification in Asian patients with psoriasis: a retrospective study. Arch Dermatol Res 2017;309:403-408.
[27]	Fu H, Shen Z, Lai R, Zhou T, Huang Y, Zhao S, et al. Clinic-radiomics model using liver magnetic resonance imaging helps predict chronicity of drug-induced liver injury. Hepatol Int 2023;17:1626-1636.
[28]	Wu T, Yang D, Wee A, Wang Y, Li M, Liu J, et al. Identification of MRI features associated with injury type, severity, and prognosis in drug-induced liver injury. Eur Radiol 2023;33:666-677.

Characteristics	Training cohort (n = 232)	Validation cohort (n = 59)	P value
Basic characteristics
Sex (male)	70 (30.17%)	20 (33.90%)	0.580
Age (y)	46.71 ± 11.70	48.42 ± 11.43	0.332
BMI (kg/m²)	22.88 ± 3.01	23.43 ± 3.72	0.241
Laboratory tests at biopsy
Albumin (g/L)	38 (35-51)	38 (34-49)	0.874
Total bilirubin (μmol/L)	20.94 (13.6-89.1)	23.72 (12.9-202)	0.619
Alanine aminotransferase (U/L)	66.53 (35.31-247.20)	47 (35-232)	0.243
Aspartate aminotransferase (U/L)	54.50 (31-263)	53 (27-304)	0.366
Alkaline phosphatase (U/L)	106 (82-353)	105.3 (63-500)	0.160
Gamma-glutamyl transpeptidase (U/L)	99 (51-216)	92 (45-286)	0.332
The percentage of Eosinophil	1.90 (0.05-5.90)	1.30 (0.04-4.60)	0.250
Platelet count	206.50 (168-254)	210 (105-351)	0.534
International normalized ratio	1.01 (0.90-1.40)	1.00 (0.90-1.50)	0.437
Median peak values
Alanine aminotransferase (U/L)	296.50 (70-486)	263 (75-616)	0.529
Alkaline phosphatase (U/L)	321 (92-655)	306 (87-783)	0.460
Total bilirubin (μmol/L)	79.20 (15-436)	85.50 (14-397)	0.224
Median time from DILI onset to liver biopsy (d)	36 (10-92)	29 (9-80)	0.405
Injury type
Hepatocellular	113 (48.71%)	29 (49.15%)	0.933
Mixed	59 (25.43%)	16 (27.12%)
Cholestatic	60 (25.86%)	14 (23.73%)
Histopathologic results of liver biopsy
Inflammation (G)			0.247
0	12	1
1	68	19
2	74	14
3	71	22
4	6	4
Fibrosis (F)			0.804
0	125	32
1	63	14
2	44	13
3	0	0
4	0	0
Medication history
Traditional Chinese medicine and herbal and dietary supplements	91	21	0.995
Anti-infectious agents	20	5
Cardiovascular drugs	24	6
Antineoplastics	6	2
Digestive drugs	16	5
Hormone	9	3
Psychotropics	6	2
Others	23	6
Two or more classes in combination	37	9

Item	AUC (95% CI)	Sensitivity (%)	Specificity (%)	+LR	-LR	P value
≥G2
Training cohort
DESI	0.887 (0.841-0.933)	82.00	87.84	6.17	0.28	/
A index	0.790 (0.728-0.853)	56.29	86.42	4.15	0.51	0.000
Vs	0.820 (0.761-0.870)	80.13	71.60	2.82	0.82	0.003
LFI	0.605 (0.535-0.672)	79.47	39.51	1.31	0.52	<0.001
Validation cohort
DESI	0.868 (0.777-0.960)	85.44	86.30	7.99	0.33	/
A index	0.757 (0.626-0.887)	94.44	56.52	2.17	0.098	0.027
Vs	0.806 (0.682-0.898)	86.11	73.91	3.3	0.19	0.158
LFI	0.667 (0.533-0.785)	30.56	95.65	7.03	0.73	0.009
≥G3
Training cohort
DESI	0.893 (0.842-0.945)	84.72	89.13	7.79	0.17	/
A index	0.815 (0.757-0.873)	75.32	72.26	2.72	0.34	0.005
Vs	0.821 (0.762-0.881)	77.92	79.35	3.77	0.28	0.014
LFI	0.622 (0.553- 0.688)	36.36	88.39	3.13	0.72	<0.001
Validation cohort
DESI	0.896 (0.808-0.984)	90.91	83.78	5.61	0.11	/
A index	0.765 (0.646-0.884)	90.91	51.35	1.87	0.18	0.020
Vs	0.809 (0.686-0.900)	81.82	75.68	3.36	0.24	0.124
LFI	0.686 (0.551-0.800)	54.55	83.78	3.36	0.54	0.006

Clinical severity grading	Pathological severity		C score^#
Clinical severity grading	G+F<5^*	G+F≥5^*	C score^#
Mild (n = 87)	77	10	1.77 ± 0.62, P = 0.029
Moderate (n = 162)	146	16	2.25 ± 0.86, P = 0.034
Severe (n = 42)	35	7	4.30 ± 1.41

Item	G+F<5	G+F≥5	AUC (95%CI)	P value^*	Sensitivity (%)	Specificity (%)	+LR	-LR
Training cohort
C score	0.70 ± 0.36	4.34 ± 1.69	0.909 (0.853-0.965)	/	84.62	86.96	6.49	0.18
A index	1.18 ± 0.32	1.55 ± 0.27	0.797 (0.736-0.849)	0.001	81.48	67.32	2.49	0.28
F index	1.65 ± 0.67	2.40 ± 0.57	0.755 (0.691-0.812)	0.000	96.30	45.37	1.76	0.082
Validation cohort
C score	3.22±0.53	7.11±0.86	0.885 (0.783-0.987)	/	80.00	92.59	10.8	0.22
A index	1.20±0.31	1.32±0.14	0646 (0.511-0.766)	0.007	80.00	48.15	1.54	0.42
F index	1.61±0.61	1.99±0.20	0.728 (0.596-0.836)	0.047	60.00	66.67	1.80	0.60
