Can Different Expertise Levels of Ultrasound Operators Accurately Screen with Handheld Ultrasound?

doi:10.37015/AUDT.2023.230046

Abstract

Abstract:

Objective: To evaluate accuracy and feasibility of a handheld ultrasound machine for measuring carotid artery intima-media thicknesses (CIMT) and hemodynamic parameters by different expertise levels of ultrasound operators.

Methods: The operators were divided into three groups based on the level of their medical expertise: ultrasound technician, sonographer, and nursing staff. Operators from each group measured the CIMT and hemodynamic parameters of 25 volunteers using both handheld ultrasound and a conventional ultrasound machine. The reliability and reproducibility of handheld ultrasound measurements of CIMT and hemodynamic parameters (peak systolic velocity (PSV), end-diastolic velocity (EDV)) in operators were analyzed.

Results: After a period of training, there was no statistically significant difference between the mean CIMT measured using handheld ultrasound among the three operators (0.45 ± 0.09 mm, 0.50 ± 0.07 mm, 0.46 ± 0.08 mm, P> 0.05, respectively), as well as PSV (83.30 ± 15.42 cm/s, 76.28 ± 13.26 cm/s, 81.12 ± 21.21 cm/s, P> 0.05, respectively) and EDV (21.04 ± 4.12 cm/s, 21.87 ± 5.05 cm/s, 20.17 ± 5.90 cm/s, respectively, P> 0.05). Furthermore, there was a good repeatability and consistent of handheld ultrasound device in measuring mean CIMT in the ultrasound technician and sonographer groups (r = 0.662, 0.691, respectively, P < 0.01).

Conclusions: Under the premise of proper training, handheld ultrasound systems are feasible for rapid and primary assessment of carotid artery by operators with different levels of expertise.

Key words: Handheld ultrasound; Conventional ultrasound; Carotid artery; Intima-media

Yuzhou Shen, MD, Lin Jin, MD, Lei Sha, MD, Mengmeng Cao, MD, Desheng Sun, MD, Li Liu, MD, Zhaojun Li, MD. Can Different Expertise Levels of Ultrasound Operators Accurately Screen with Handheld Ultrasound?. Advanced Ultrasound in Diagnosis and Therapy, 2024, 8(3): 116-123.

Figures/Tables 7

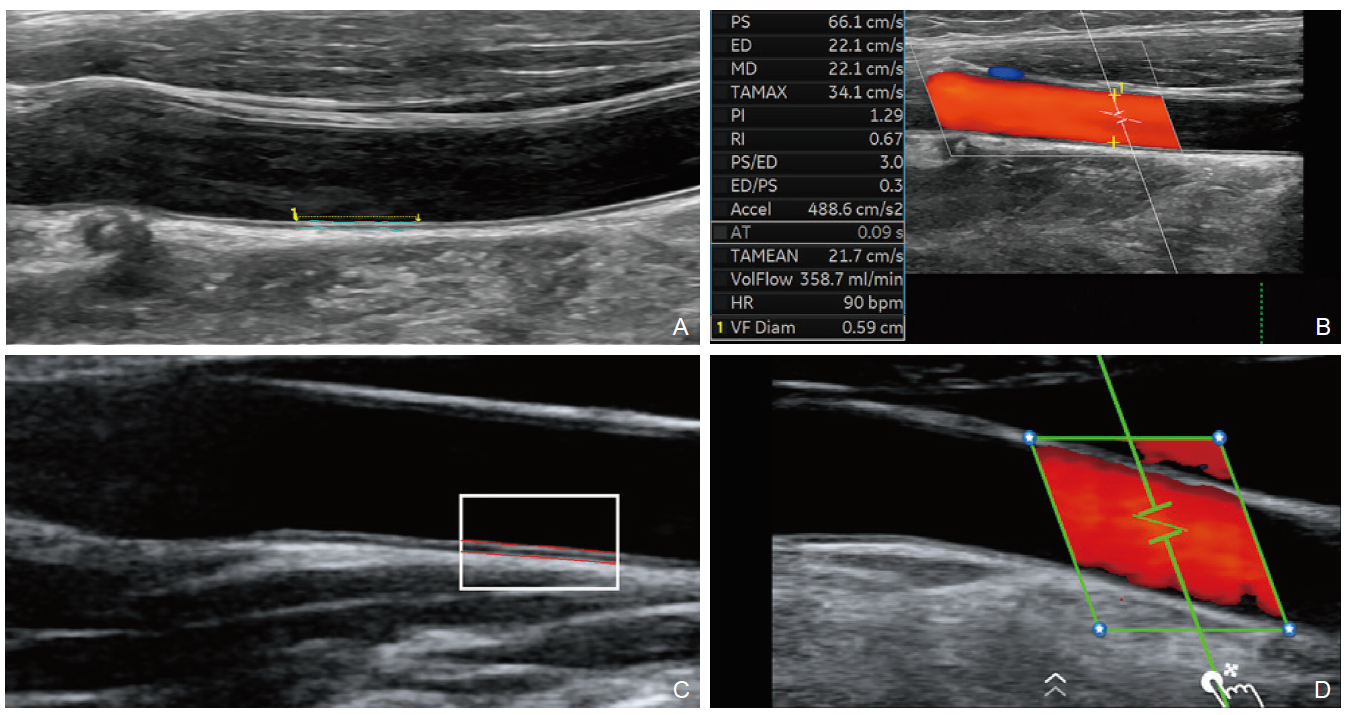

Figure 1

Figure 2

Table 1

Table 2

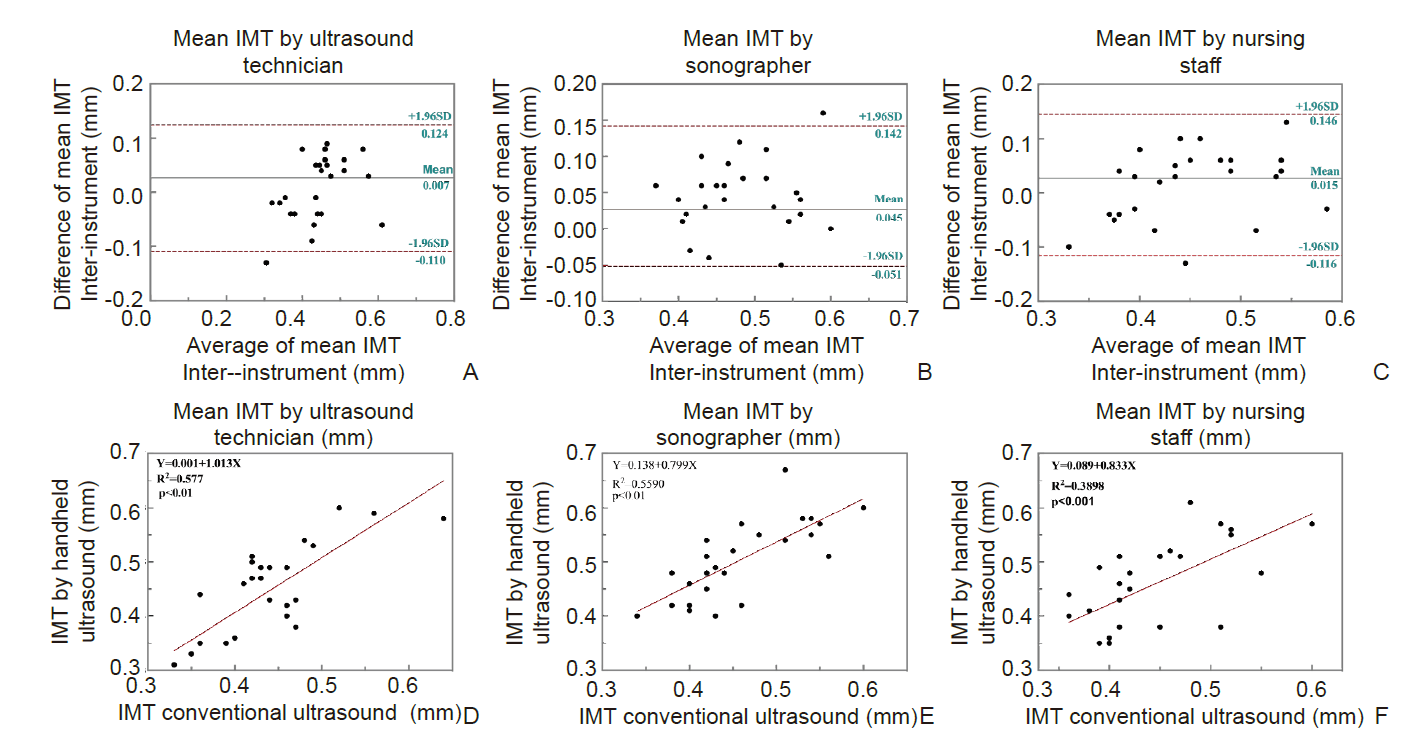

Figure 3

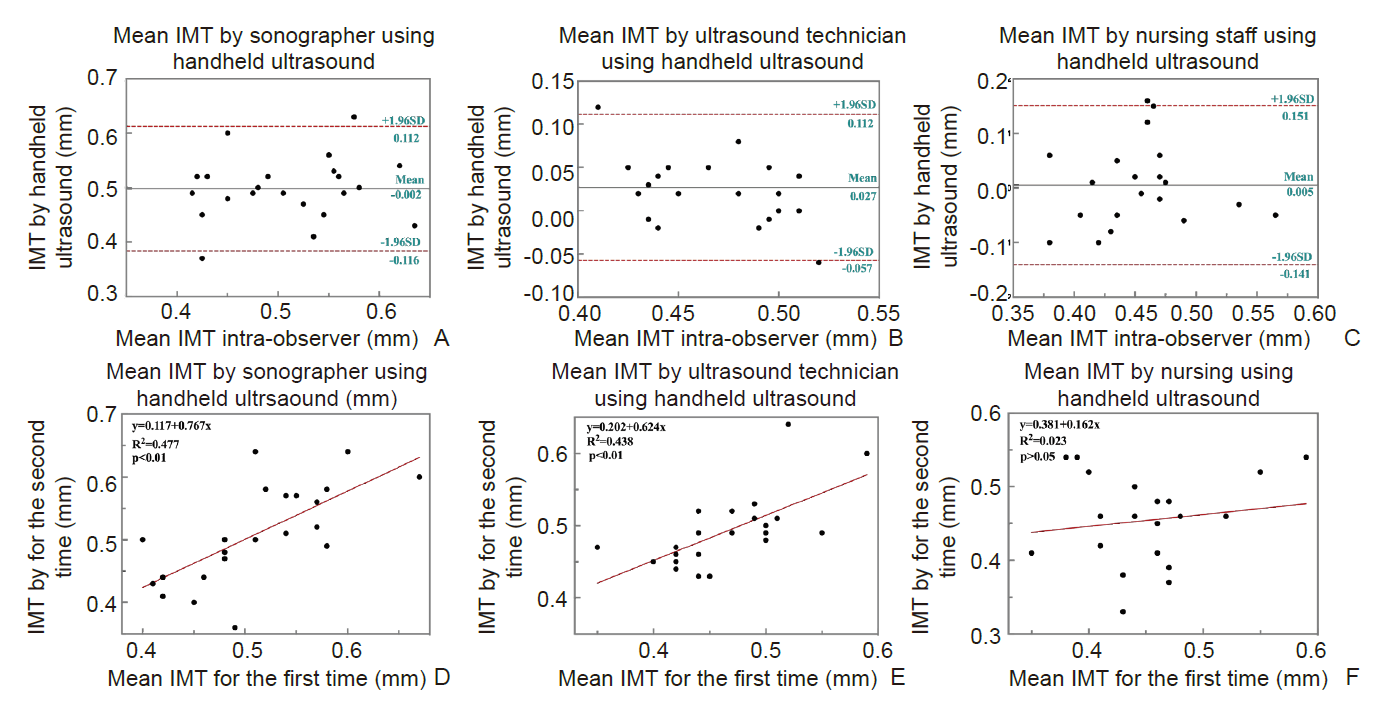

Figure 4

Table 3

References 23

[1]	Wiley BM, Borlaug BA, Kane GC. Lung ultrasound in heart failure: envisioning handheld ultrasound to empower nurses and transform health care. J Am Coll Cardiol 2022;80:524-526.
[2]	Jung EM, Dinkel J, Verloh N, Brandenstein M, Stroszczynski C, Jung F, et al. Wireless point-of-care ultrasound: First experiences with a new generation handheld device. Clin Hemorheol Microcirc 2021;79:463-474.
[3]	Wang YT, Chai HH, Ye RZ, Li JZ, Liu JB, Lin C, et al. Point-of-care ultrasound: new concepts and future trends. Advanced ultrasound in diagnosis and therapy 2021;5:268-276.
[4]	Liu JY, Xu JJ, Forsberg F, Liu JB. CMUT/CMOS-based Butterfly iQ - A Portable Personal Sonoscope. Advanced ultrasound in diagnosis and therapy 2019;3:115-118.
[5]	Barnett HJM, Taylor DW, Haynes RB, Sackett DL, Peerless SJ, Ferguson GG, et al. Beneficial effect of carotid endarterectomy in symptomatic patients with high-grade carotid stenosis. N Engl J Med 1991;325:445-453.
[6]	Arnett DK, Blumenthal RS, Albert MA, Buroker AB, Goldberger ZD, Hahn EJ, et al. 2019 ACC/AHA Guideline on the Primary Prevention of Cardiovascular Disease: A Report of the American College of Cardiology/American Heart Association Task Force on Clinical Practice Guidelines. Circulation 2019;140:e596-e646.
[7]	Eigenbrodt ML, Evans GW, Rose KM, Bursac Z, Tracy RE, Mehta JL, et al. Bilateral common carotid artery ultrasound for prediction of incident strokes using intima-media thickness and external diameter: an observational study. Cardiovasc Ultrasound 2013;11:22.
[8]	Hermann DM, Gronewold J, Lehmann N, Seidel UK, Möhlenkamp S, Weimar C, et al. Intima-media thickness predicts stroke risk in the Heinz Nixdorf Recall study in association with vascular risk factors, age and gender. Atherosclerosis 2012;224:84-89.
[9]	Jin L, Tong LY, Sha L, Cao MM, Shen CQ, Du LF, et al. Handheld versus conventional ultrasound for assessing carotid artery in routine volunteers. Clin Hemorheol Microcirc 2022;82:255-263.
[10]	Davies KN, Humphrey PR. Complications of cerebral angiography in patients with symptomatic carotid territory ischaemia screened by carotid ultrasound. J Neurol Neurosurg Psychiatry 1993;56: 967-972.
[11]	Elgersma OE, Buijs PC, Wüst AF, van der Graaf Y, Eikelboom BC, Mali WP. Maximum internal carotid arterial stenosis: assessment with rotational angiography versus conventional intraarterial digital subtraction angiography. Radiology 1999;213:777-783.
[12]	Weber J, Veith P, Jung B, Ihorst G, Moske-Eick O, Meckel S, et al. MR angiography at 3 Tesla to assess proximal internal carotid artery stenoses: contrast-enhanced or 3D time-of-flight MR angiography? Clin Neuroradiol 2015;25:41-48.
[13]	Alexandrov AV, Needleman L. Carotid artery stenosis: making complex assessments of a simple problem or simplifying approach to a complex disease? Stroke 2012;43:627-628.
[14]	Bennett D, De Vita E, Mezzasalma F, Lanzarone N, Cameli P, Bianchi F, et al. Portable Pocket-Sized Ultrasound Scanner for the Evaluation of Lung Involvement in Coronavirus Disease 2019 Patients. Ultrasound Med Biol 2021;47:19-24.
[15]	Chetioui A, Masia T, Claret PG, Markarian T, Muller L, Lefrant JY, et al. Pocket-sized ultrasound device for internal jugular puncture: A randomized study of performance on a simulation model. J Vasc Access. 2019;20:404-408.
[16]	Sforza A, Mancusi C, Carlino MV, Buonauro A, Barozzi M, Romano G, et al. Diagnostic performance of multi-organ ultrasound with pocket-sized device in the management of acute dyspnea. Cardiovasc Ultrasound 2017;15:16.
[17]	Platz E, Pivetta E, Merz AA, Peck J, Rivero J, Cheng S. Impact of device selection and clip duration on lung ultrasound assessment in patients with heart failure. Am J Emerg Med 2015;33:1552-1556.
[18]	Mancusi C, Carlino MV, Sforza A. Point-of-care ultrasound with pocket-size devices in emergency department. Echocardiography 2019;36:1755-1764.
[19]	Jang AY RJ, Oh PC, Moon J, Chung WJ. Feasibility and applicability of wireless handheld ultrasound measurement of carotid intimamedia thickness in patients with cardiac symptoms. Yonsei Med J 2020;61: 129-136.
[20]	Kim DH, Shin S, Kim N, Choi T, Choi SH, Choi YS. Carotid ultrasound measurements for assessing fluid responsiveness in spontaneously breathing patients: corrected flow time and respirophasic variation in blood flow peak velocity. Br J Anaesth. 2018;121:541-549.
[21]	Corriveau MM, Johnston KW. Interobserver variability of carotid Doppler peak velocity measurements among technologists in an ICAVL-accredited vascular laboratory. J Vasc Surg 2004;39:735-741.
[22]	Gill RW. Measurement of blood flow by ultrasound: accuracy and sources of error. Ultrasound Med Biol 1985;11:625-641.
[23]	Eicke BM, Kremkau FW, Hinson H, Tegeler CH. Peak velocity overestimation and linear-array spectral Doppler. J Neuroimaging 1995;5:115-121.

Item	Nursing staff group	Sonographer group	Technician group	P value
Max IMT (mm)	0.54 ± 0.07	0.54 ± 0.07	0.54 ± 0.09	0.893
Mean IMT (mm)	0.44 ± 0.06	0.46 ± 0.07	0.44 ± 0.07	0.515
PSV (cm/s)	66.94 ± 14.12	78.88 ± 10.93^*	82.30 ± 14.32^*	< 0.001
EDV (cm/s)	21.73 ± 4.11	25.38 ± 3.39^*	24.66 ± 3.43^*	0.003
Pulsatility index	1.74 ± 0.94	1.36 ± 0.21	1.47 ± 0.29	0.373
Resistive index	0.76 ± 0.24	0.68 ± 0.04	0.70 ± 0.04	0.284
Systolic-diastolic ratio	3.11 ± 0.56	3.12 ± 0.42	3.36 ± 0.49	0.141
ACCEL (cm/s²)	665.97 ± 350.53	680.08 ± 188.14	859.50 ± 254.27^*#	0.016
Acceleration time (s)	0.09 ± 0.05	0.08 ± 0.02	0.07 ± 0.02	0.059
TAMEAN (cm/s)	18.84 ± 5.12	24.70 ± 3.67^*	25.67 ± 5.14^*	< 0.001
Heart rate (bpm)	71.40 ± 12.41	71.52 ± 8.25	74.60 ± 10.30	0.414

Item	Nursing staff group	Sonographer group	Technician group	P value
Max IMT (mm)	0.47 ± 0.08	0.52 ± 0.07	0.46 ± 0.09^#	0.047
Mean IMT (mm)	0.46 ± 0.08	0.50 ± 0.07	0.45 ± 0.09	0.067
PSV (cm/s)	81.12 ± 21.21	76.28 ± 13.26	83.30 ± 15.42	0.357
EDV (cm/s)	20.17 ± 5.90	21.87 ± 5.05	21.04 ± 4.12	0.164
Pulsatility index	1.76 ± 0.45	1.52 ± 0.30^*	1.75 ± 0.37^#	0.028
Resistive index	0.75 ± 0.07	0.71 ± 0.05	0.74 ± 0.05	0.057
Systolic-diastolic ratio	4.67 ± 2.44	3.54 ± 0.52^*	4.06 ± 0.85^#	0.033
ACCEL (cm/s²)	699.72 ± 281.14	625.16 ± 147.76	712.64 ± 212.7	0.449
Acceleration time (s)	0.10 ± 0.03	0.09 ± 0.01	0.09 ± 0.02	0.404
TAMEAN (cm/s)	21.78 ± 6.07	23.98 ± 4.85	23.14 ± 4.30	0.161
Heart rate (bpm)	73.12 ± 8.96	72.80 ± 8.47	75.08 ± 9.72	0.750

Items	Depth	Conventional ultrasound	Handheld ultrasound	t value	P value
Longitudinal resolution (mm)	2 cm	1.01 ± 0.03	1.01 ± 0.02	-0.111	0.919
	3 cm	0.99 ± 0.01	0.99 ± 0.02	1.000	0.391
	4 cm	1.00 ± 0.04	1.01 ± 0.03	-0.812	0.476
	5 cm	0.99 ± 0.03	1.00 ± 0.03	-2.449	0.092
Lateral resolution (mm)	2 cm	4.18 ± 0.10	4.20 ± 0.08	-0.397	0.718
	3 cm	4.13 ± 0.10	4.18 ± 0.10	-0.775	0.495
	4 cm	4.18 ± 0.13	4.05 ± 0.19	0.243	0.824
	5 cm	4.10 ± 0.08	4.12 ± 0.13	-0.264	0.809
