Explainable Artificial Intelligence in Echocardiography

doi:10.26599/AUDT.2025.250089

Abstract

Abstract:

Recent advancements in artificial intelligence (AI) have generated novel opportunities and challenges in ultrasound imaging. Deep learning algorithms exhibit significant potential in analyzing echocardiographic images, encompassing tasks such as view classification, quantification of cardiac function, and the diagnosis and risk assessment of cardiac diseases. The “black box” nature of AI models limits their clinical applications. Adopting explainable artificial intelligence (XAI) methods is crucial for improving the transparency and understanding of model predictions. This paper reviews the progress of AI applications in echocardiography, with a particular emphasis on XAI as a technical solution to enhance the transparency of model decision-making and its benefits compared to traditional AI models. This review outlines recent advancements in XAI applications for echocardiography and their clinical implications.

Key words: Explainable artificial intelligence; Echocardiography; Deep learning

Hu Xuelin, Zhu Ye, Zhang Zisang, Quan Yuanting, Chen Wenwen, Chen Leichong, Xu Guangyu, Qin Luning, Xie Mingxing, Zhang Li. Explainable Artificial Intelligence in Echocardiography. Advanced Ultrasound in Diagnosis and Therapy, 2025, 9(4): 409-425.

Figures/Tables 12

Table 1

Public datasets with links"

Name	Purpose	Data source	Data	Annotator	Links
LVEF, left ventricular ejection fraction; A4C, apical four chamber; A2C, apical two chamber; PLAX, parasternal long-axis; LA, left atrium; A3C, apical three chamber; A5C, apical five chamber; PSAX, parasternal short-axis; RWMA, regional wall motion abnormality; PH, pulmonary hypertension; ASD, atrial septal defect; RVEF, right ventricular ejection fraction; 3DE, three dimension echocardiography
CAMUS [4,43]	LVEF measurement	Single-center, France	500 patients; A4C, A2C sequences	Clinicians	https://humanheart-project.creatis.insa-lyon.fr/database/#collection/6373703d73e9f0047faa1bc8/folder/64b5a9b473e9f00492ce9036
EchoNet-Dynamic [5]	LV function and structure assessment	Multi-center, America	10,030 A4C videos	Clinicians	https://echonet.github.io/dynamic/
EchoNet-LVH [70]	Ventricular hypertrophy quantification and cause prediction	Multi-center, America	23,745 patients; 12,000 PLAX videos	Clinicians	https://echonet.github.io/lvh/
HMC-QU [71]	Myocardial infarction detection and left ventricle wall segmentation	Single-center, Qatar	160 A4C videos	Clinicians	https://www.kaggle.com/datasets/aysendegerli/hmcqu-dataset
SyntheticDataQA2DSTE [72]	Speckle tracking algorithm assessment	Multi-center	7 different systems; 105 synthetic sequences	Simulation data	http://bit.ly/SyntheticDataQA2-DSTE
Unity Imaging Collaborative [70]	LV function assessment	Multi-center, Britain	21,866 A2C, A3C, A4C, A5C, PLAX images	Clinicians	https://data.unityimaging.net/
TMED-1 [73]	View classification and heart disease severity diagnosis	Single-center, Qatar	2,773 patients; 318,481 PLAX, PSAX, or other images	Clinicians	https://tmed.cs.tufts.edu/tmed_v1.html
TMED-2 [74]	View classification and heart disease severity diagnosis	Single-center, Qatar	6,567 patients; 442,636 PLAX, PSAX, A2C, A4C, or other images	Clinicians	https://tmed.cs.tufts.edu/tmed_v2.html
Seg RWMA [75]	Recognition of RWMA	Single-center, China	198 patients; 1,782 A4C, A3C, A2C videos；9,881 A4C, A4C, A3C, A2C images	Clinicians	https://www.kaggle.com/datasets/xiaoweixumedicalai/regional-wall-motion-abnormality-echo
Cardiac UDC [76]	Heart structure segmentation	Single-center, China	516 patients; 992 PLAX, PSAX, A4C videos	Clinicians	https://www.kaggle.com/datasets/xiaoweixumedicalai/cardiacudc-dataset
Abnorm Cardiac Echo Videos [77]	Heart disease diagnosis	Single-center, China	507 PH, 243 ASD; 750 A4C videos	Clinicians	https://www.kaggle.com/datasets/xiaoweixumedicalai/abnormcardiacechovideos
Echocardiogram Matched Subset [78]	Recognition of RWMA	Single center, America	4,579 patients; >500,000 images	Clinicians	https://physionet.org/content/mimic-iv-echo/0.1/
RVENet [12,79]	RVEF measurement	Single-center, Hungary	859 patients; 3,583 A4C videos	Clinicians	https://www.cardiacatlas.org/
MITEA [80]	LV function assessment	Single-center, New Zealand	143 patients; 536 3DE images	Clinicians	https://www.cardiacatlas.org/

Table 1

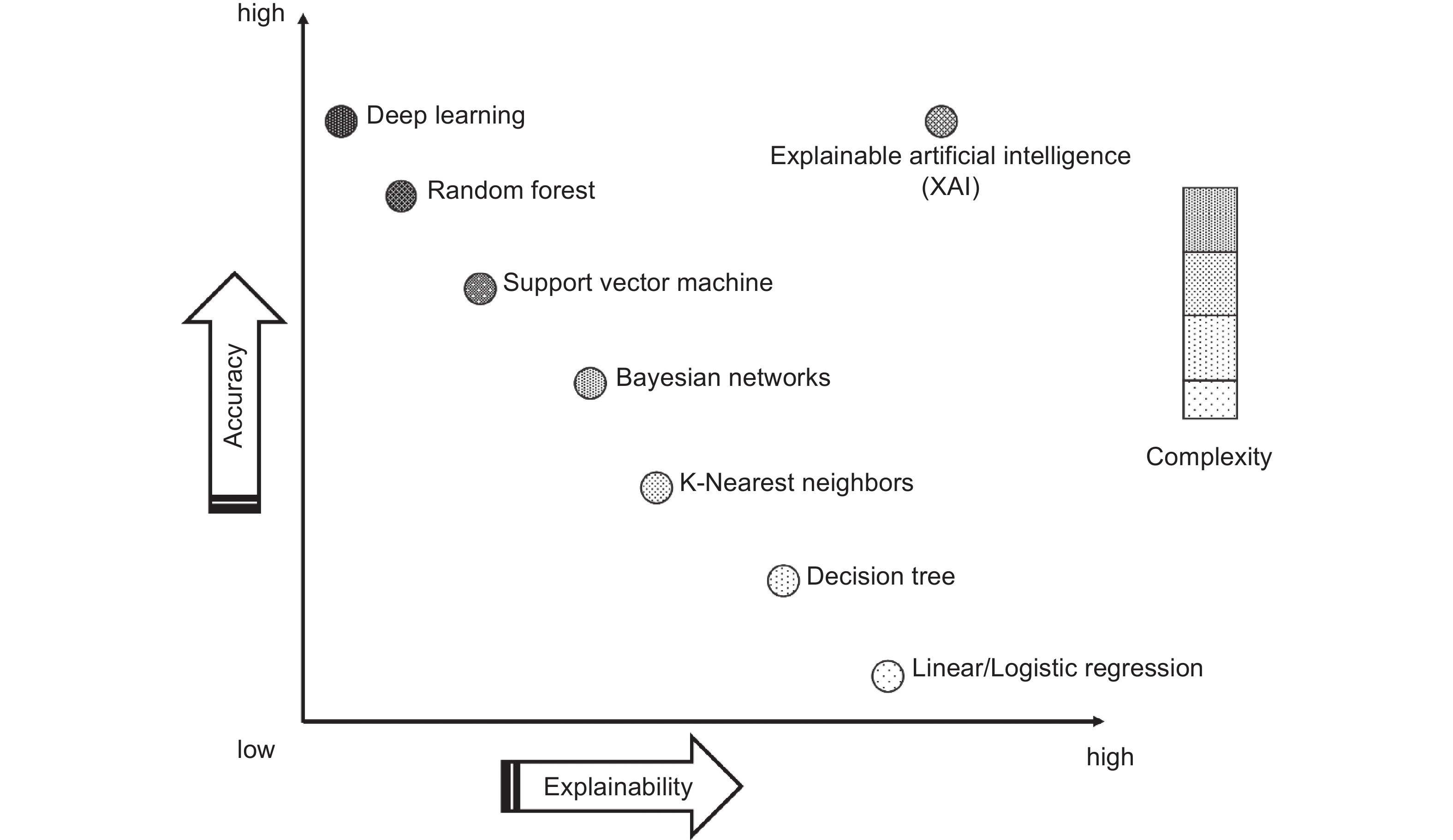

Figure 1

Table 2

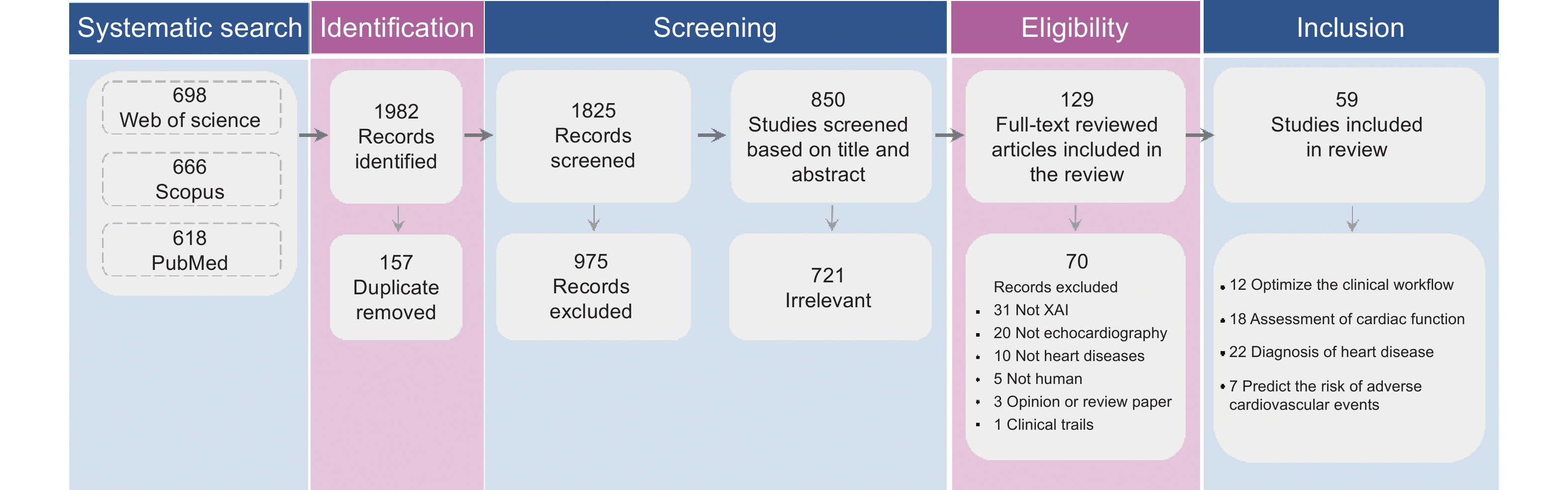

Figure 2

Table 3

Table 4

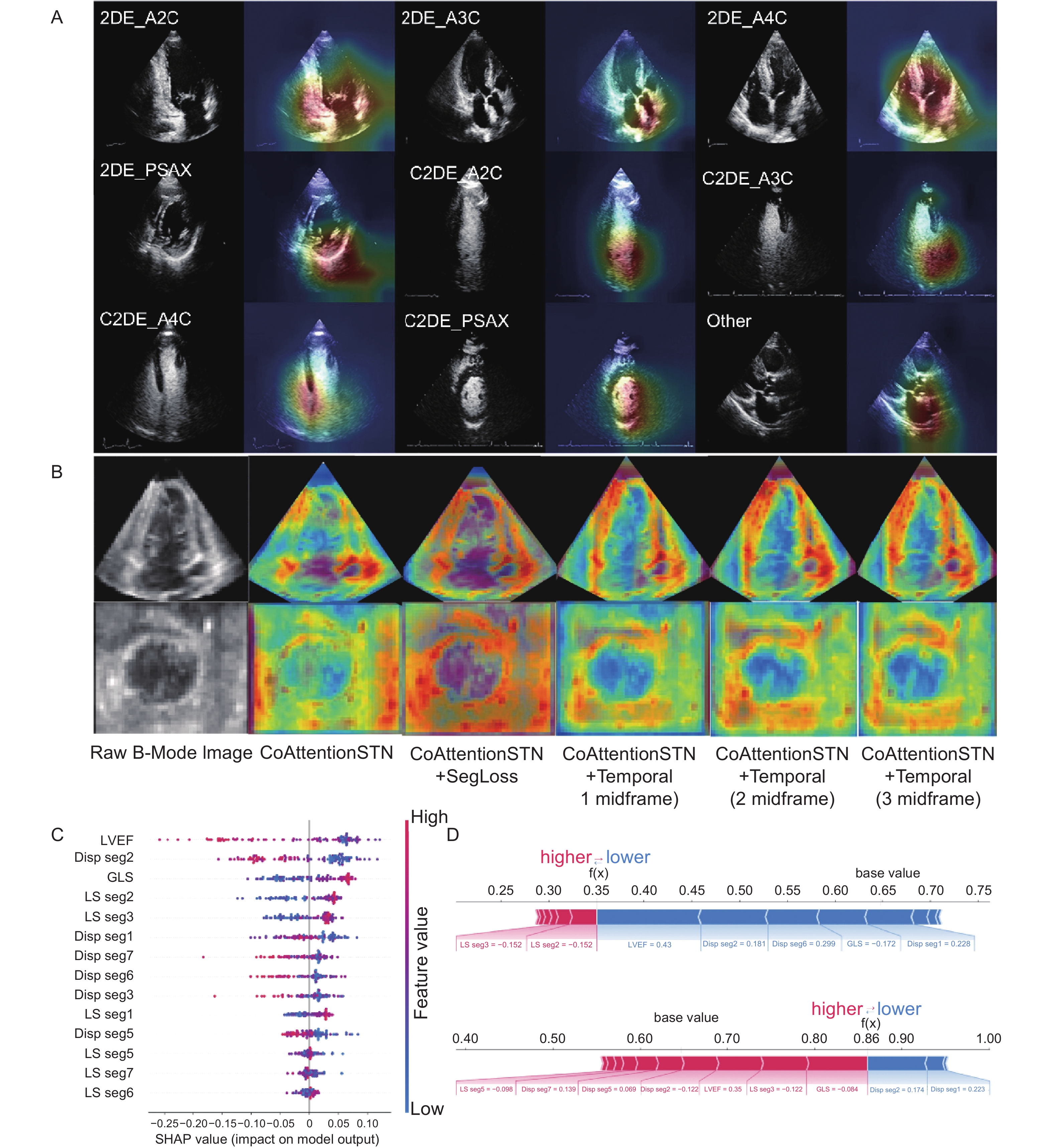

Figure 3

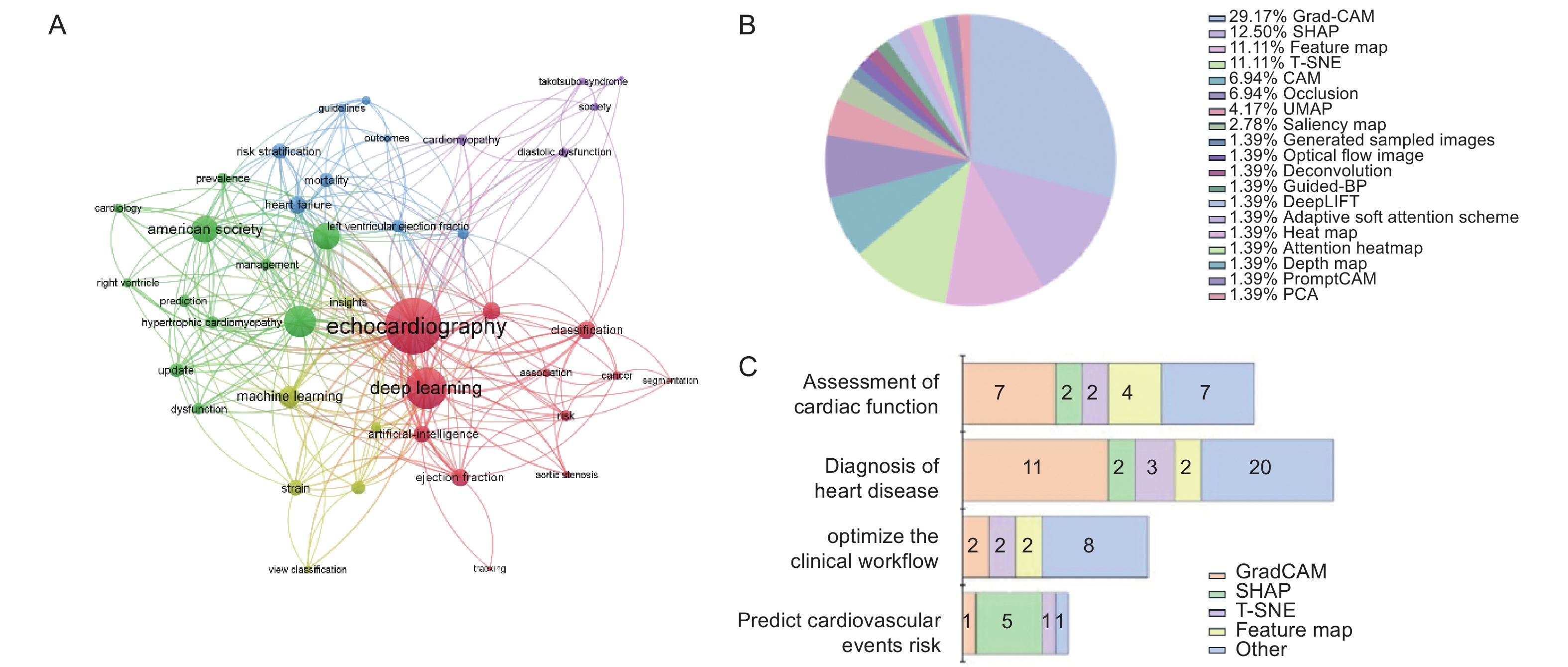

Figure 4

Table 5

Table 6

Studies of XAI in quantitative cardiac function parameters"

Study	Objective	Data*	Model	Performance	View	XAI
*, The volume of data corresponds to the research phase. LVDF, left ventricular diastolic function; HFpEF, heart failure with preserved ejection fraction; AUC, area under curve; Corr, correlation; MAE, masked autoencoders; R², R-Square; LV, left ventricle F1: F1 score; ML, machine learning; LAV, left atrial volume; RWMA, regional wall motion abnormalities; APs, active polynomials; SVM, support vector machine; DT, decision tree; RF, random forest; KNN, k-nearest neighbor; XGB, eXtreme Gradient Boosting; PH, pulmonary hypertension; RVEF, right ventricular ejection fraction; RVOT, right ventricular outflow tract; AO, aorta; RV, right ventricle; NLP, natural language processing
Xu et al.(2023) [86]	View classification; Cardiac function -LVDF	1,304 studies (view); 2,150 studies (LVDF)	CNN	Acc. 0.92	5 views	Grad-CAM
Akerman Ashley et al.(2023) [87]	Cardiac function - HFpEF	6756 cases	CNN	AUC 0.97	A4C	Grad-CAM
Dai et al.(2023) [88]	Cardiac function-LVEF	EchoNet-Dynamic, CAMUS	ML	MAE 4.17	A4C	attention heatmap
Mokhtari et al.(2022) [89]	Cardiac function-LVEF	EchoNet-Dynamic	EchoGNN	F1 0.78	A2C, A4C	learned weights on the echo-graph, average frame distance
Zhang et al.(2024) [90]	Cardiac function-LVEF	Echonet Dynamic, HMC-QU, CAMUS	DL	Acc. 0.94	A2C, A3C, A4C	t-SNE, Grad-CAM
Duffy et al.(2021) [32]	Cardiac function-LV volume	EchoNet-Dynamic	CNN	Acc. 0.93	A4C	Depth map
Barzegar et al.(2021) [34]	Cardiac function-LAV	621 videos	CNN	Acc. 0.94	A4C	feature map
Christensen et al.(2024) [10]	Cardiac function-LVEF	1,032,975 videos	EchoCLIP	AUC 0.86	A4C	PromptCAM,
Sanjeevi et al.(2023) [35]	RWMA	HMC-QU	Echo-Cardio 3D Net	AUC 0.82	A4C	Grad-CAM
Huang et al.(2020) [28]	RWMA	10,638 echocardiograms	CNN	AUR 0.91	5 views	feature map
Gomez et al.(2025) [91]	RWMA	CAMUS,HMC-QU	U-Net	Sen. 1.00	A2C, A3C, A4C	SHAP
Ragnarsdottir et al.(2024) [41]	Cardiac function -PH	1,311 videos	DL	Acc. 0.92	A4C, PSAX, PLAX	Grad-CAM
Tokodi et al.(2023) [12]	Cardiac function -RVEF	5,076 videos.	CNN	Acc. 0.78	A4C	occlusion
Hirata et al.(2024) [43]	Cardiac function -PH	885 patients	logistic regression, SVM, RF, XGB	Acc. 0.59	/	SHAP
Zhao et al.(2022) [92]	Cardiac function -RVOT, AO	177 videos, CAMUS	DL	Acc. 0.99	PSAX, A4C	feature map
Anand et al.(2024) [93]	Cardiac function -PH	7,853 patients	XGB	Acc. 0.82	/	SHAP
Hagberg et al.(2022) [40]	Cardiac function-RV	12,684 studies	DL, NLP	Acc. 0.92	A4C	Saliency map
Sun et al.(2024) [42]	Cardiac function-PH	3,912 subjects	chamber attention network	Acc.0.83	A4C, PLAX	t-SNE, Grad-CAM

Table 6

Table 7

Studies of XAI in diagnosis of heart disease"

Study	Diagnosis	Data*	Model	Performance	View	XAI
*, The volume of data corresponds to the research phase. HF, heart failure; CM, cardiomyopathy; AOSAX, short-axis view of the aortic valve; CASA, coronary artery short axis
Cikes et al.(2019) [49]	HF	1,106 patients	ML	a classification of a phenotypically heterogeneous HF cohort	A2C, A4C	intrinsically interpretable model
Shad et al.(2021) [50]	HF	723 patients	CNN	AUC 0.73	A4C	Grad-CAM
Ouyang et al.(2020) [5]	CM	10,030 videos	EchoNet-Dynamic	AUC 0.97	A4C	PromptCAM
Morita et al.(2021) [94]	CM	45 patients	CNN	AUC 0.86	6 views	Grad-CAM
Hwang et al.(2022) [56]	CM	930 subjects	CNN	Acc. 0.92	5 views	CAM
Liu et al.(2023) [95]	CM	1,807 videos	DL	AUC: ASD 0.99, DCM 0.98, HCM 0.99, prior MI 0.98, Normal 0.98	A4C	CAM
Chao et al.(2024) [57]	CM	381 patients	CNN	AUC 0.97	A4C	Grad-CAM
H et al.(2023 Dec) [96]	CM	91 studies	KNN, LR, MLP, RF, SVM, XGB	Acc. 0.73	A4C	feature map
Peng et al.(2024) [97]	CM	13,575 images	DL	Acc. 0.90	5 views	t-SNE, Grad-CAM
Vafaeezadeh et al.(2022) [98]	Valvular Disease	1,773 subjects	eight CNNs	Acc. 0.80	A4C, PLAX	Grad-CAM
Cheng et al.(2022) [67]	Valvular Disease	3,554 patients	CNN	Acc. 0.86	A4C	t-SNE, Deep LIME
Vafaeezadeh et al.(2023) [55]	Valvular Disease	1,773 subjects	CNN	Acc. 0.71	PLAX	Grad-CAM
Holste et al.(2023) [14]	Valvular Disease	5,257 studies	CNN	AUC 0.98	PLAX	Grad-CAM
Tang et al.(2024) [53]	Valvular Disease	2,31 patients	DL	Acc. 0.82	AOSAX	Grad-CAM
Gu et al.(2025) [52]	Valvular Disease	2572 studies	ProtoASNet	Acc.0.80	PLAX,PSAX	PCA, t-SNE, UMAP
Wang et al.(2021) [15]	Other	1,308 subjects	CNN	Acc. 0.95(CHD), Acc. 0.92(VSD or ASD)	5 views	adaptive soft attention scheme, occlusion analysis, relative confidence heat map
Zaman et al.(2021) [59]	Other	17,280 images	CNN, RNN	Acc. 0.80	A4C	Grad-CAM
Nurmaini et al.(2022) [99]	Other	76 pregnant women	4 CNNs	Acc. 1.0	4CV fetal	Grad-CAM, Guided-BP
Lee et al.(2022) [61]	Other	203 patients	six deep learning networks	Acc. 0.78	CASA	CAM
Zaman et al.(2024) [60]	Other	300 patients	CNN	improve the diagnostic Acc. in 70% of ‘difficult’ TTS cases	A4C	Grad-CAM
Jina et al.(2023) [100]	Other	34,368 images	ConvNeXt-V2	Acc. 0.86	4 views	feature map
Lee et al.(2025) [101]	Other	203 patients	MLRANet	Sen. 0.93	PSAX	t-SNE, UMAP, attention mechanism

Table 7

Table 8
